Karabiner-Elements

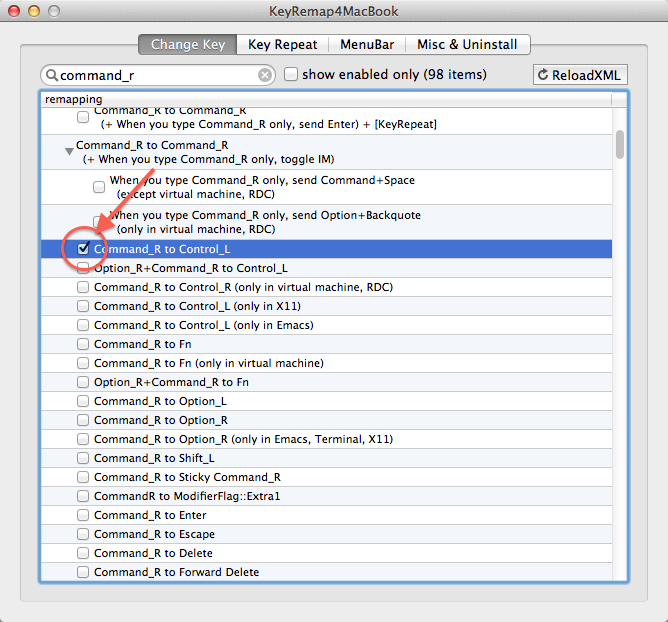

Karabiner-Elements (was known as KeyRemap4MacBook in 2014) lets you do advanced key remapping.

Download at 〔Karabiner-Elements At https://karabiner-elements.pqrs.org/〕

Karabiner is very advanced. You can:

• Distinguish left Ctrl vs right Ctrl, remap Esc, remap Enter key.
• Set Space bar to be Ctrl or ⌘ command when held down with another key, but as space itself when no other keys is pressed at the same time.
• Set keys to be device dependent. i.e. You have 2 keyboard. You want F2 to do different things.

View Keypress and Keycode

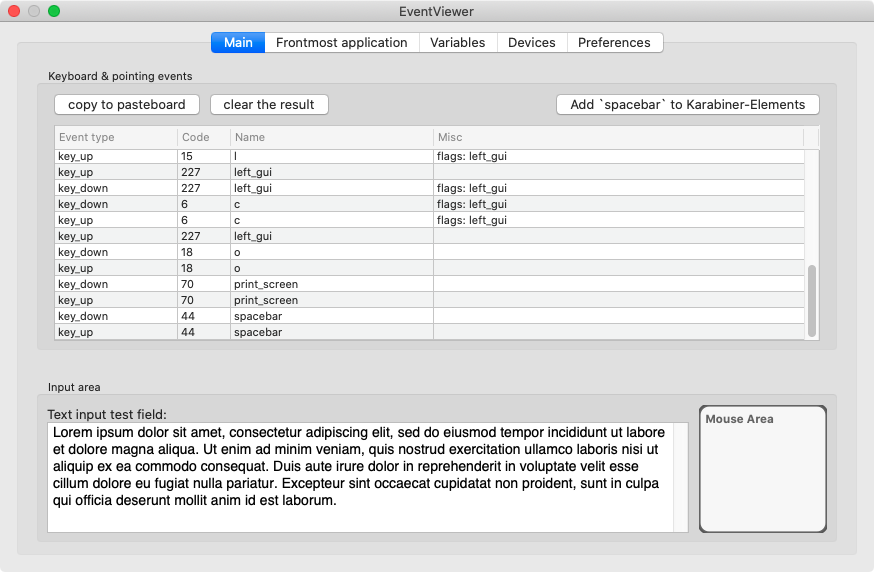

It'll also install a “Karabiner-EventViewer”. It's in your Applications folder.

Launch it, and press key or mouse button and it'll show the keycode.

Sample JSON Key Config File

some advanced key mappings are done by using a file in JSON Data Format. You have to write the file.

there is no graphical user interface.

config is located at ~/.config/karabiner/karabiner.json

here's some sample config i use.

f11 f12 prev next tab

{
    "description": "f11 f12 prev next tab",
    "manipulators": [
        {
            "from": {
                "key_code": "f11"
            },
            "to": [
                {
                    "key_code": "tab",
                    "modifiers": ["left_shift", "left_control"]
                }
            ],
            "type": "basic"
        },
        {
            "from": {
                "key_code": "f12"
            },
            "to": [
                {
                    "key_code": "tab",
                    "modifiers": [ "left_control"]
                }

            ],
            "type": "basic"
        }
    ]
}

f10 close tab

{
    "description": "f10 close tab",
    "manipulators": [
        {
            "from": {
                "key_code": "f10"
            },
            "to": [
                {
                    "key_code": "w",
                    "modifiers": [ "left_command"]
                }
            ],
            "type": "basic"
        }
    ]
}

shift f11 f12 for fine volume controls

{
    "description": "shift f11 f12 for fine volume controls",
    "manipulators": [
        {
            "from": {
                "key_code": "f11",
                "modifiers": { "mandatory": ["shift"] }
            },
            "to": [
                {
                    "key_code": "volume_decrement",
                    "modifiers": ["left_shift", "left_option"]
                }
            ],
            "type": "basic"
        },
        {
            "from": {
                "key_code": "f12",
                "modifiers": { "mandatory": ["shift"] }
            },
            "to": [
                {
                    "key_code": "volume_increment",
                    "modifiers": ["left_shift", "left_option"]
                }
            ],
            "type": "basic"
        }
    ]
}

f3 f4 copy paste

{
    "description": "f3 f4 copy paste",
    "manipulators": [
        {
            "from": { "key_code": "f3" },
            "to": [
                {
                    "key_code": "c",
                    "modifiers": ["left_command"]
                }
            ],
            "type": "basic"
        },
        {
            "from": { "key_code": "f4" },
            "to": [
                {
                    "key_code": "v",
                    "modifiers": ["left_command"]
                }
            ],
            "type": "basic"
        }
    ]
}

f9 prev app

{
    "description": "f9 prev app",
    "manipulators": [
        {
            "from": { "key_code": "f9" },
            "to": [
                {
                    "key_code": "tab",
                    "modifiers": ["left_command"]
                }
            ],
            "type": "basic"
        }
    ]
}
