Geometric Inversion, 2D Tiles

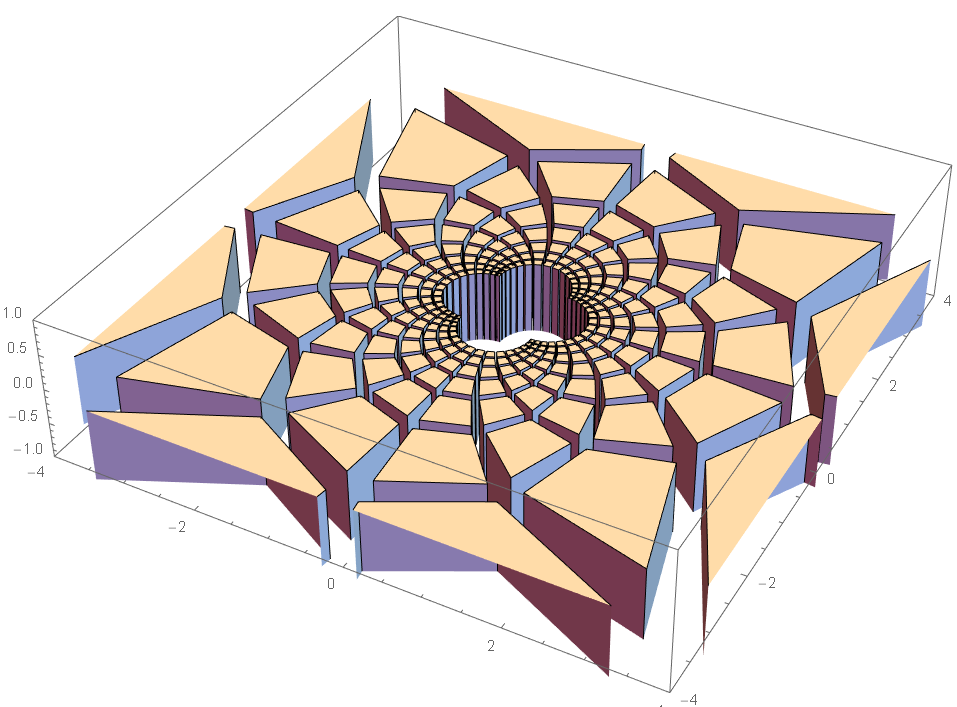

geometric inversion as decorative pavement tiles
![geometric inversion 3d tiles 2021-09-26](i/geometric_inversion_3d_tiles_2021-09-26.png)
geoInv = ((With[{x662 = #.#}, If[ x662 < 0.00000001, #, #/x662] ]) &); xRange=1; gridDivN = 15; δ=xRange 2/gridDivN; sqWidth=δ * 8/10; s=sqWidth/2; tileHeight= -2; squaresGP= Table[ With[{ a={x-s,y-s},b={x+s,y-s},c={x+s,y+s},d={x-s,y+s}}, GraphicsComplex[{a,b,c,d},Line@{1,2,3,4,1}] ] ,{x,-xRange,xRange,δ},{y,-xRange,xRange,δ}]; Graphics[squaresGP, Axes -> True ] gp2= squaresGP /. GraphicsComplex[x_, r__] :> GraphicsComplex[geoInv /@ x, r]; gp3d= gp2 /. GraphicsComplex[x_, r__] :> GraphicsComplex[ ( Append[#,0] &) /@ x, r]; Graphics3D[gp3d, Axes -> True, PlotRange-> {{-4,4},{-4,4},{-1,1}} ] tilesGP = gp3d /. GraphicsComplex[pts_, Line[x_]] :> GraphicsComplex[ Join[pts,((#+{0, 0, tileHeight}) &) /@ pts], List@Polygon@{Drop[x,-1], {1, 5, 6, 2}, {2, 6, 7, 3}, {3, 7, 8, 4}, {4, 8, 5, 1}, {5, 6, 7, 8}} ]; Graphics3D[tilesGP, Axes -> True, PlotRange-> {{-4,4},{-4,4},{-1,1}} ]
prevent congestion in center
because geometric inversion will swap points outside a circe to inside, so, it became very dense near the center of the circle. We want to prevent that, so garden pavement tiles don't become infinitely small.
we do this by applying the geometric inversion to grid points, also, square is also resized by the inversion. Then, we apply geometric inversion to them.
![geometric inversion 2021-09-29 KFD9](i/geometric_inversion_2021-09-29_KFD9.png)
geoInv = ((With[{x662 = #.#}, If[ x662 < 0.00000001, #, #/x662] ]) &); gridDivN = 16; nGon = 4; rr = (2/gridDivN) /2 (Sqrt@2) .7; α = 2 Pi/8; gridPoints = Map[ geoInv , CoordinateBoundsArray[{{-1,1},{-1,1}}, Into@gridDivN], {2}] ; gp1= With[{sq= ((({Cos[#] , Sin[#]} rr) &) /@ Range[α, 2 π+α - 2 π/nGon/2, 2 π/nGon ]) }, Map[ Function[{x}, GraphicsComplex[ ((x+#) &) /@ (sq x.x), Line @ Append[Range @nGon,1] ]], gridPoints ,{2}] ]; gp2= gp1 /. GraphicsComplex[x_, r__] :> GraphicsComplex[geoInv /@ x, r]; gr1 = Graphics[gp1, Axes->True ] gr2 = Graphics[gp2, Axes->True ] GraphicsGrid[ {{gr1, gr2}} ]
3d tile
![geometric inversion 2021-09-30](i/geometric_inversion_2021-09-30.png)
geoInv = ((With[{x662 = #.#}, If[ x662 < 0.00000001, #, #/x662] ]) &); gridWidth = 2; gridDivN = 14; polygonRadius = gridWidth/gridDivN/2 .7; polygonNumSides = 4; polygonRotate = 2 Pi/8; tileHeight = -0.2; gridPoints = Map[ geoInv , CoordinateBoundsArray[{{-gridWidth/2, gridWidth/2}, {-gridWidth/2, gridWidth/2}}, Into@gridDivN], {2}] ; polygonVertexes = ((({Cos[#], Sin[#]} polygonRadius Sqrt@2)&) /@ Range[polygonRotate, 2 π+polygonRotate - 2 π/polygonNumSides/2, 2 π/polygonNumSides]); gPolygons2D = Map[ Function[{pt}, GraphicsComplex[ ((pt+#) &) /@ (polygonVertexes (pt.pt)), Line @ Append[Range@polygonNumSides, 1] ]], gridPoints, {2}]; Graphics[gPolygons2D, Axes -> True ] g2GeoInvert = gPolygons2D /. GraphicsComplex[pts_, r__] :> GraphicsComplex[geoInv /@ pts, r]; Graphics[g2GeoInvert, Axes -> True ] g3D = g2GeoInvert /. GraphicsComplex[x_, r__]:>GraphicsComplex[( Append[#, 0]&) /@ x, r]; Graphics3D[g3D, Axes -> True] g4Tiles3D = g3D /. GraphicsComplex[pts_, Line[indexes_]] :> GraphicsComplex[ Join[pts, ((#+{0, 0, tileHeight}) &) /@ pts], Polygon@ With[{ polyTop = Range[polygonNumSides], rangeX = Partition[ Append[Range[polygonNumSides], 1], 2, 1], polyBottom = Range[polygonNumSides+1, 2 polygonNumSides] }, Join[ {polyTop}, ((With[{x = First@#, y = Last@#}, {x, y, y+polygonNumSides, x+polygonNumSides}] &) /@ rangeX ), {polyBottom} ] ] ]; Graphics3D[g4Tiles3D, Axes -> True]
