HP-28S Advanced Scientific Calculator

By Xah Lee. Date: . Last updated: .

In ~1991, i bought the HP-28s calculator for ~$250. It was introduced in 1988 and is the first calculator that is capable of symbolic computation. For example, you can use it to solve quadratic equation symbolically. (that is, give symbolic solution for a*x^2 + b*x + c == 0.) And, it is also one of the first graphing calculator. This is a RPN calculator, and is also a programable calculator. (The first graphing calculator is Casio fx-7000G, 1985.)

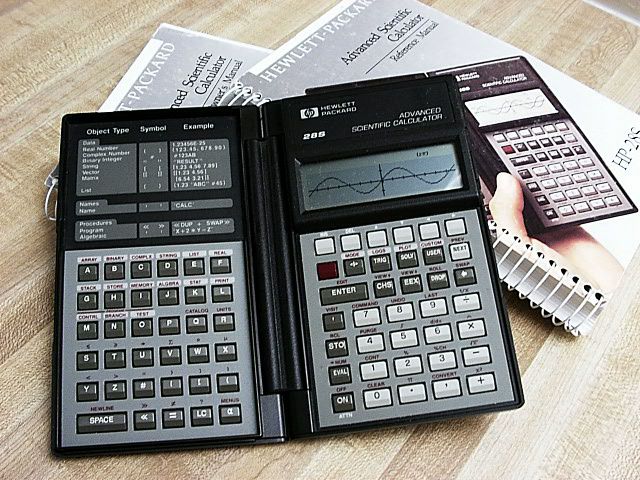

HP-28s 12020038
HP-28s calculator, and its 2 volume spiral-bound manuals. I read them cover-to-cover in 1991. HP-28S Advanced Scientific Calculator Owner's Manual .

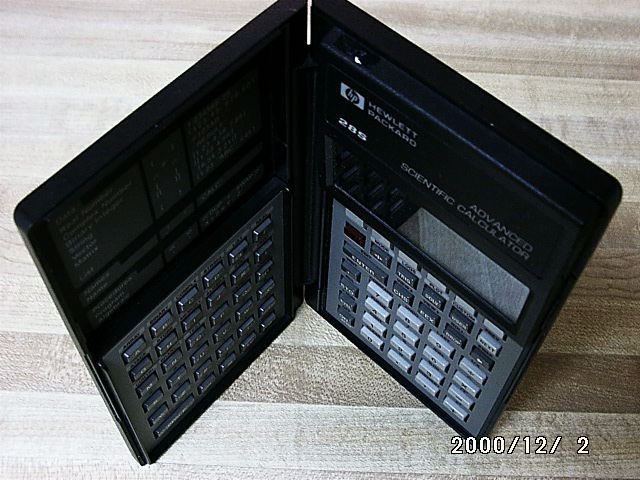

HP-28s 12020024
HP-28s top view.

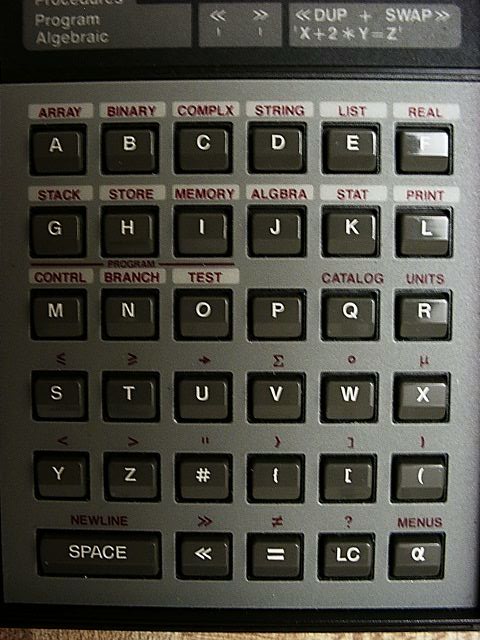

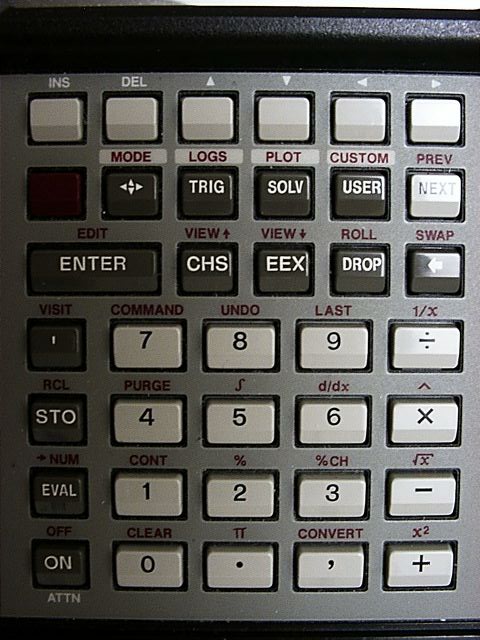

HP-28s 12020031 HP-28s 12020032
HP-28s left and right panels.

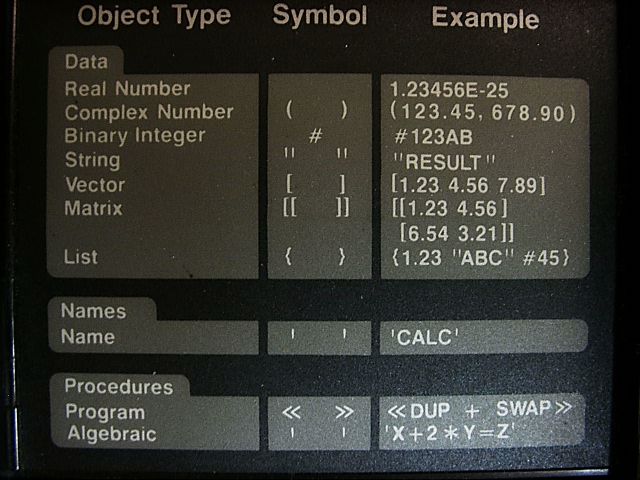

HP-28s 12020029
helpful syntax reminder.

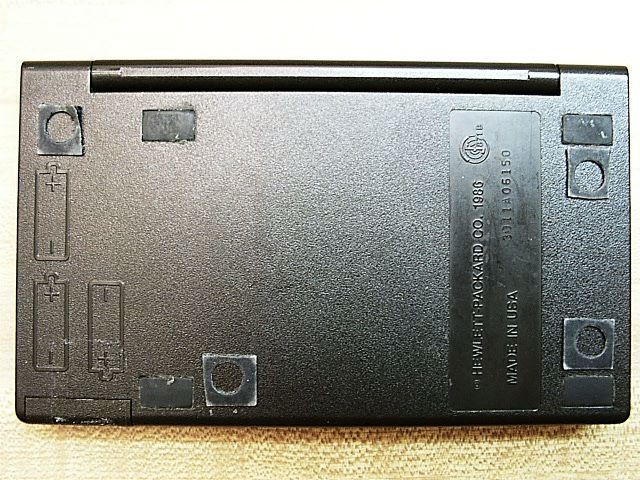

HP-28s 12020034
the rubber feet are almost rubbed off (the rectangular ones). I stuck some other rubber feet there. (the one with round holes)

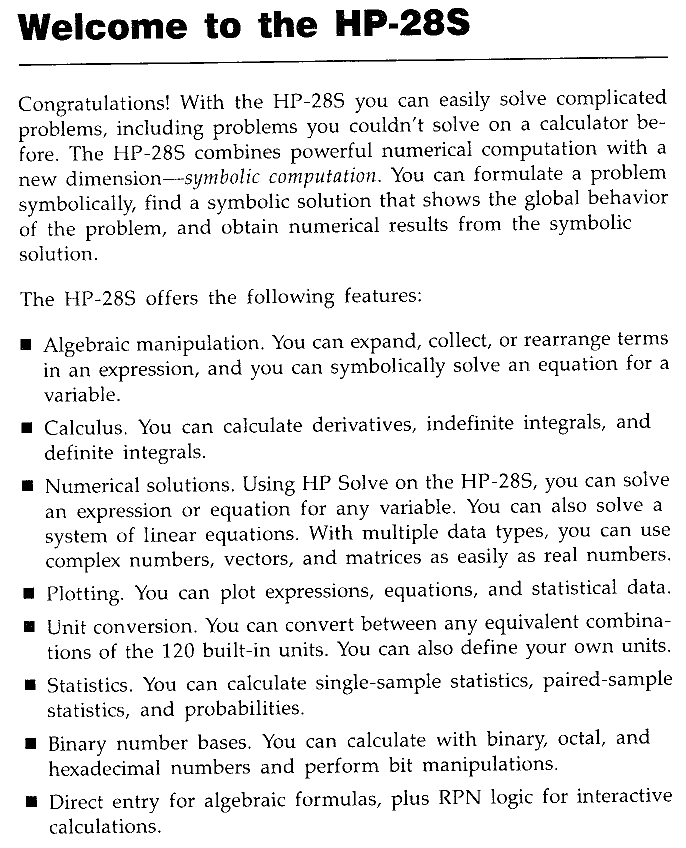

HP-28s manual features
HP-28s features, from the manual.

My First Computer Program: the 8-Queens Puzzle

It is actually the HP-28s that i did my first programing. I never took any programing course, but am a avid learner of math and computer stuff. I read the manuals from cover to cover. [see Emacs Idolization: Have You Read the Emacs Manual From Cover to Cover?]

My first program is a program to solve the 8 queens puzzle: position 8 queens on chess board so that none can check the other. It was a puzzle posted to CompuServe's math forum (CompuServe is a pre-internet online server in early 1990s). At the time, i'm also a crazy fan of recreational math. I took it upon myself to solve this by programing my super calculator to automatically generate the solution.

The 8-queens puzzle is typically solved by a backtracking algorithm. This is what i did, even though at the time i know nothing about computer science or programing. [see my Computing Experience (Impression Of Lisp from Mathematica)] Also, a couple years later i realized, that there is a bug in my program. That is, my program misses 8 solutions (or was it 4?).

Here's my code for the 8-queens puzzle:

hp-28s 8 queens code
HP-28s solution for the 8-queens problem.

Music Chord Program

Around 1991, i'm taking music classes. One of the things in music theory and training, is to understand the various chords, and being able to identify by ear. The HP-28s is capable of playing simple beeps of various frequencies. Thus, i actually wrote a relatively large program that plays musical chords and scales.

What follows below is a introduction from the documentation i wrote:

These programs can spell and play any triad or seventh chords. You type-in a chord and have the calculator to play it by pressing PLAY1, PLAY2, PLAY3 or spelled out by pressing SPELL. By pressing CHORD, HP-28 will generate a triad or 7th chord randomly. For example, you key in “A M ” and press PLAY1, HP-28 will play a A major triad.

(Enharmonic chords with roots on E♯, B♯, F♭, C♭ are not generated by CHORD but can be arguments of SPELL or PLAY. Enharmonic chords using double sharp or double flat as roots are not generated nor recognized. These programs can be used on HP-28s (and probably would work in HP-48s, HP-48sx, HP-48G, and HP-48GX models).

Chords to be PLAYed or SPELLed must be typed in as a string format: “Note” + “AccidentalSign” + “Quality”. For example, A sharp major 7th is entered as “A#M7”. A major triad is entered as “A M ”.

Here is a table showing all the chords starting with roots of A, A♭, and A♯. Chords starting with other keys are similarly entered.

"M" = Major
"m" = minor
"+" = augumented
"h" = half-diminished.
"∞" = dimished
    Spaces in the string can be left out.

This system of programs also allows you to key in the duration of each note to be played, in increment of 1/100th seconds. You can also change the ratio between adjacent notes to get 24 note per octave micro turning or other strange effects. To do so, simply change the value stored in DUR or R. For more information, see the variable diagrams in Section 3 of this book. This system will be expanded in later version. The following functions are good candidates for expansion: play chord progressions, play scales, identify chords, invert/retrograde/augument/diminition of melodies, metronome, tuning machine. Readers are welcome to send in their .expansion programs.

You can download the full documentation and program here: HP-28S_music_chords.doc

Misc Programs

I've written a bunch of other simple programs that help me study math in college. Here they are, in image format from screenshot of Microsoft Word doc. (these code were written ~1992.)

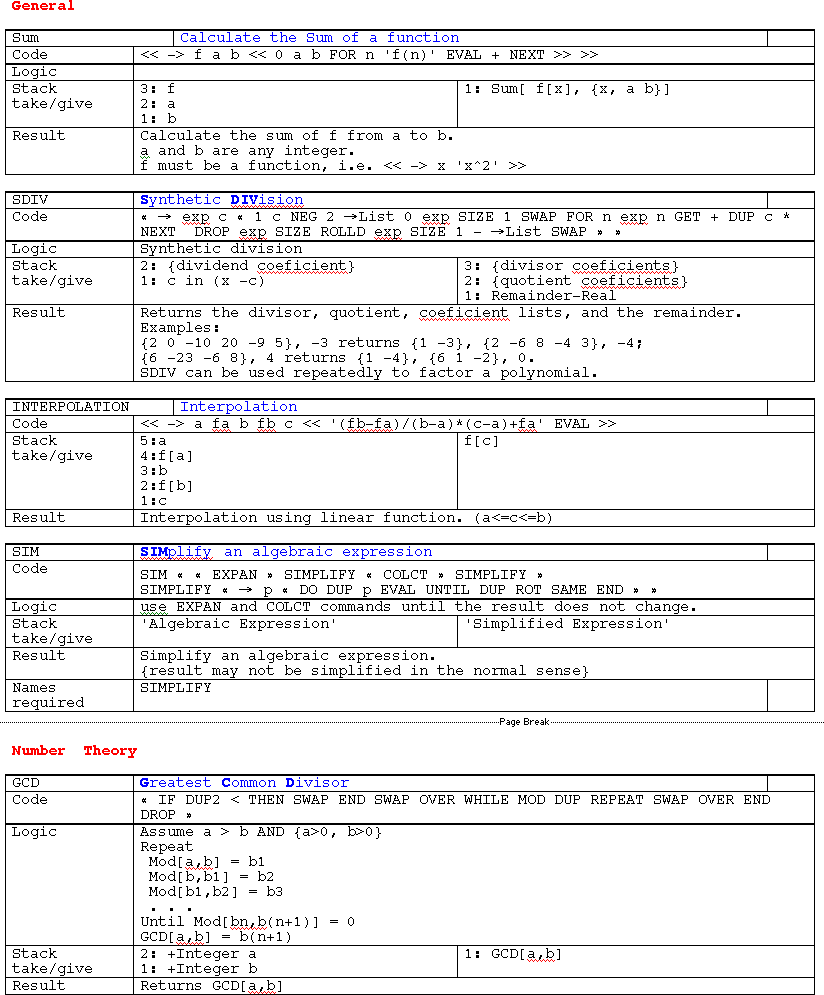

hp-28s programs1
HP-28s misc programs, 1

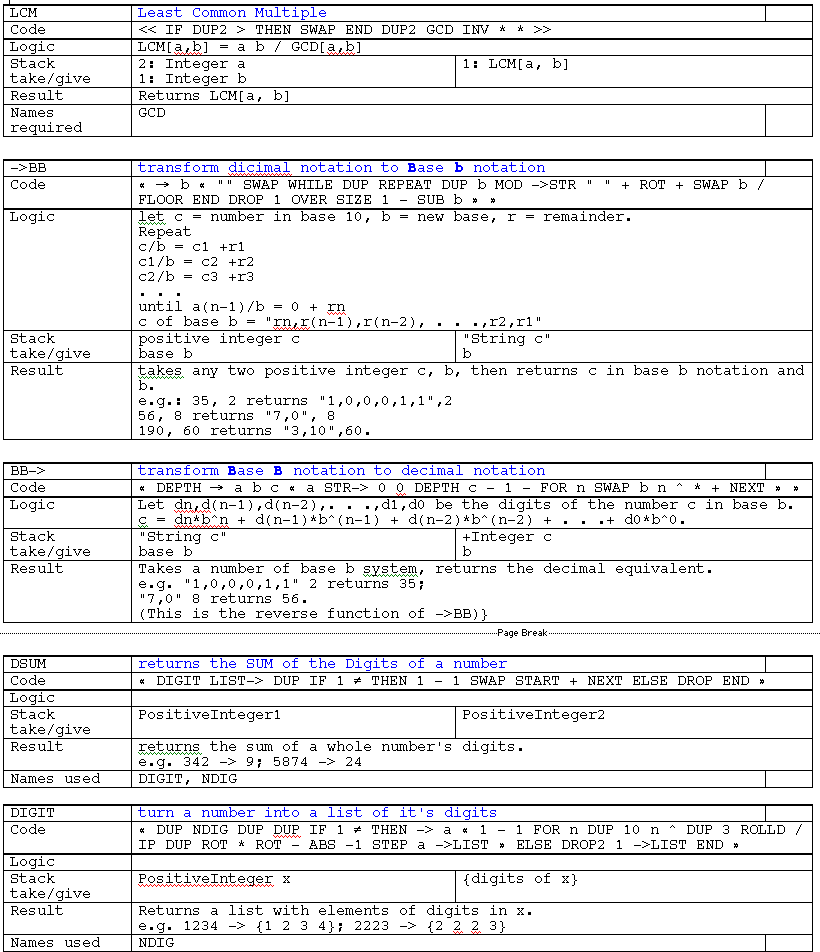

hp-28s programs2
HP-28s misc programs, 2

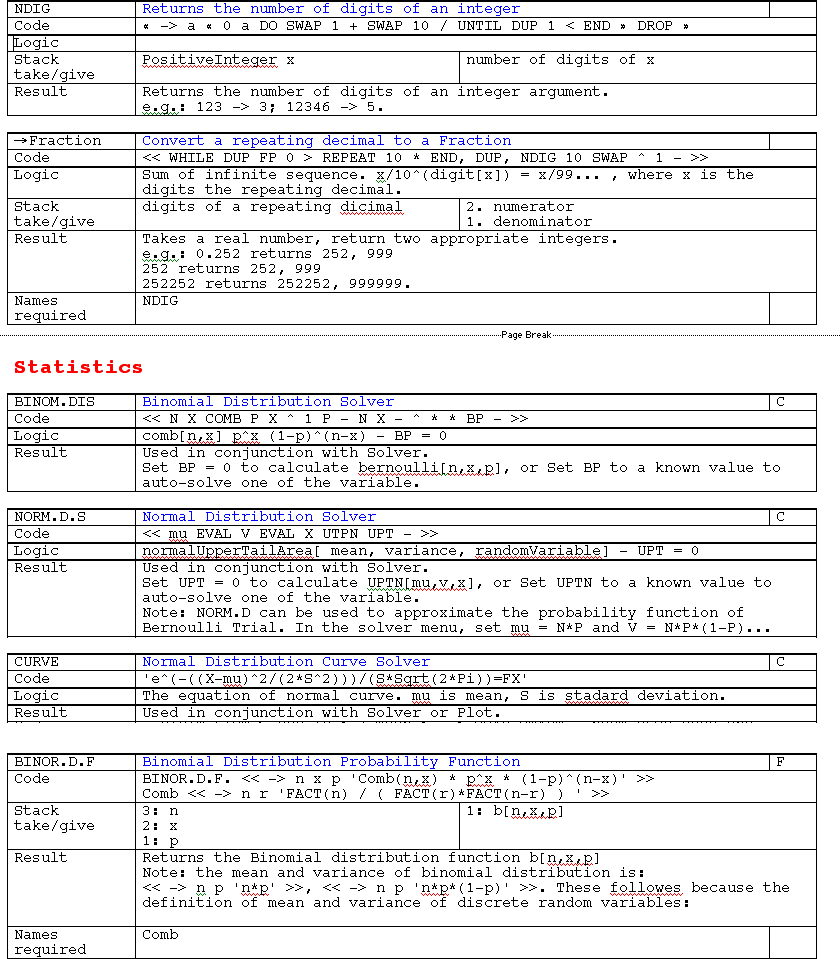

hp-28s programs3
HP-28s misc programs, 3
