Emacs 23 (Released 2009-07)

By Xah Lee. Date: . Last updated: .

This page is a list of major new features in emacs 23 (technically, 23.1.1), released in . It also includes practical tips about using the new features. This page only lists the most important or practical changes relevant to average emacs users. It may miss features or changes you find important.

For features in emacs 23.2, see: Emacs 23.2 (Released 2010-05).

Emacs NEWS Files

Editing Text

Text Selection Highlighted

Text selection is highlighted by default. This is done by having Transient Mark Mode on by default. To turn it off, put the following in your emacs init file:

(transient-mark-mode 0) ; 1 for on, 0 for off

When Transient Mark Mode is on, several emacs commands now will work on the selected text if you have text selected. These commands are:

fill-paragraph 【Alt+q】
Add line breaks.
indent-for-tab-command 【Tab】
Indenting code.
ispell-word 【Alt+$】
Check spelling.

Shift+Arrow to Select Text

Also, now you can hold down the Shift key then press arrows key to select text. To turn this off, put:

(setq shift-select-mode nil) ; “t” for true, “nil” for false

However, by default, pressing delete key will not delete selected text. If you want this, put:

(delete-selection-mode 1) ; make typing override text selection

Down Arrow Key by Visual Line

Pressing down arrow key moves the cursor by a screen line. In emacs 22, pressing down arrow moves the cursor by newline as determined by line breaks. (thanks to Stefan Monnier [http://www.iro.umontreal.ca/~monnier/] for implementing this.)

To have emacs 22 behavior, put this:

(setq line-move-visual nil) ; use “t” for true, “nil” for false

If you just want it temporarily on or off, you can Alt+x set-variable.

Following is a command definition that lets you toggle line-move-visual.

(defun toggle-line-move-visual ()
  "Toggle behavior of up/down arrow key, by visual line vs logical line."
  (interactive)
  (if line-move-visual
      (setq line-move-visual nil)
    (setq line-move-visual t))
  )

If you have personal keyboard macros, they usually rely on up/down arrow keys moving lines determined by line breaks. So, when you need to call your macros, or record new, you may want to temporarily set line-move-visual to nil.

Wrap Long Lines by Word Boundary

emacs23 word wrap
visual-line-mode off (top) and on (bottom) in emacs 23.

See: Emacs: Visual Line Mode.

Line Numbers on Margin

Now you can show line numbers on the margin, a common feature in other editors.

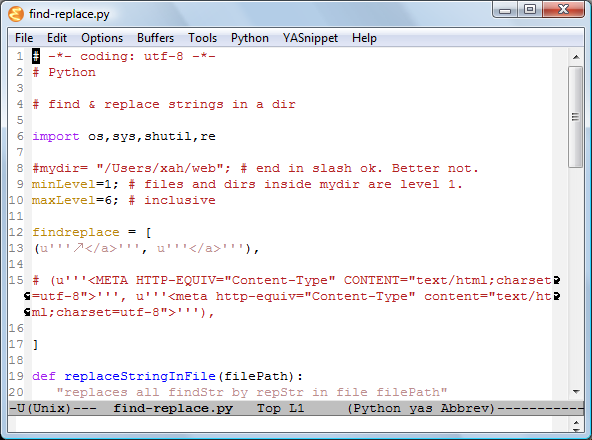

emacs line numbers
Emacs with linum-mode on.

Wildcard in Keyword Completion

Minibuffer's command completion supports wildcard char *, and also supports substring matching in some situations.

For example, if you start to open a file, and emacs prompts you for file name in the minibuffer, you can type *report then Tab, and emacs will suggest all file names that has the word “report” in it. You can use more than one wildcard at different places and in dir paths, for example: ~/*/report/ja*.

Completion with wildcard works in minibuffer prompt whenever it makes sense. For example, when you Alt+x switch-to-buffer, execute-extended-command 【Alt+x】, describe-function, etc.

Note: this new completion feature applies in minibuffer only. When you are in a programing mode and pressing Meta+Tab for completing function names, wildcard does not apply, nor substring matching.

Completion (Emacs Manual)

In emacs 22, you can turn on partial-completion-mode or ido-mode for similar features. Both are still available in emacs 23.

Make Whitespace Visible

whitespace-mode is a mode that make whitespace visible. Calling it toggles it. whitespace-newline-mode is similar, except that it is only for newline char. (Thanks to Vinicius Jose Latorre for this feature)

This feature is useful when you need to trim your whitespaces. For example, Python code copied from the web, or working with tab delimited files of spreadsheets and address books.

For some tips and detail, see: How to use and setup Emacs's whitespace-mode.

File Management

Opening Multiple Files in Buffer

Now you can open multiple files in dired in one shot. When you open a file (find-file; Ctrl+x Ctrl+f), you can type for example *.html, and emacs will open all those files in background buffers. (call ibuffer to see your buffers.)

Renaming Files

In dired, the function wdired-change-to-wdired-mode now has a shortcut Ctrl+x Ctrl+q. For detail, see: Emacs: Batch Rename Files.

Find Replace on Multiple Files

In dired, the command dired-do-query-replace-regexp 【Q】 does interactive find replace on multiple files. 〔see tutorial〕

In emacs 23, there are 2 new functionalities. During query replace, Pressing Y replaces all remaining matches in ALL REMAINING FILES. Pressing N stops doing replacements in the current file and skips to the next file. These 2 new functionalities is available for all commands that use tags-query-replace.

This is a implementation of suggestion in bug 267 〔see Emacs Suggestion: dired-do-query-replace-regex Replace ALL〕.

New Font Engine

The font engine has been rewritten. Now it support the operating system's fonts, and also supports anti-aliasing, on Windows, Mac, Linux.

To choose font, use menu [Options ▸ Set Default Font…]. Use menu [Options ▸ Save Options] to save for future sessions.

(Font rendering with Fontconfig and Xft (X FreeType interface library). (Thanks to Keith Packard (https://keithp.com/) for work on this.))

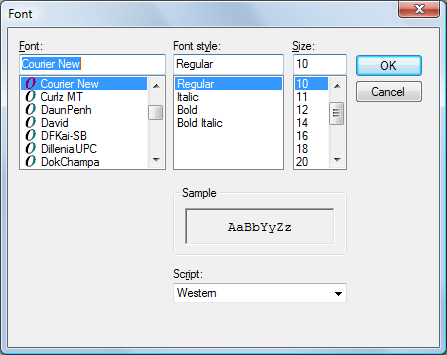

emacs23 font selection dialog
The font selection dialog in Emacs 23 on Windows. Emacs now uses operating system's fonts.

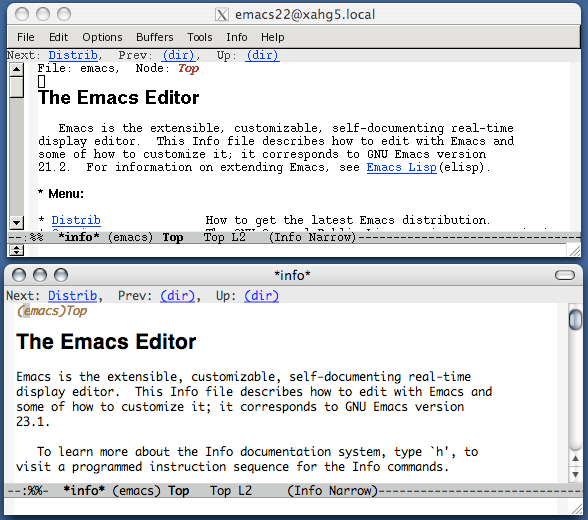

emacs22 vs emacs23 font
Font rendering in Emacs 22 and Emacs 23. The top is emacs 22 compiled normally with X11 support, running in Mac OS X's X11. The bottom is emacs 23 compiled “--with-ns”, for Mac OS X.

Unicode

Characters are now represented by Unicode's utf-8 encoding internally. Much thanks to Kenichi Handa for implementing this.

You can see a effect of the change by Alt+x describe-char.

Output of “describe-char” on char “★” in Emacs 22

  character: ★ (299365, #o1110545, #x49165, U+2605)
    charset: mule-unicode-2500-33ff
             (Unicode characters of the range U+2500..U+33FF.)
 code point: #x22 #x65
     syntax: w  which means: word
<mark>buffer code: #x9C #xF2 #xA2 #xE5
  file code: #xE2 #x98 #x85 (encoded by coding system mule-utf-8-unix)
</mark>    display: by this font (glyph code)
     -apple-monaco-medium-r-normal--12-120-72-72-m-120-iso10646-1 (#x2605)
Output of “describe-char” on char “★” in Emacs 23

        character: ★ (9733, #o23005, #x2605)
preferred charset: Unicode (Unicode (ISO10646))
       code point: 0x2605
           syntax: _    which means: symbol
         category: .:Base, c:Chinese, h:Korean, j:Japanese
<mark>      buffer code: #xE2 #x98 #x85
        file code: #xE2 #x98 #x85 (encoded by coding system utf-8-unix)
</mark>          display: by this font (glyph code)
    uniscribe:-outline-BatangChe-normal-normal-normal-mono-13-*-*-*-c-*-gb2312.1980*-* (#xB18)

Character code properties: customize what to show
  name: BLACK STAR
  general-category: So (Symbol, Other)

Note the lines “buffer code:” and “file code:” above. In emacs 23, the info also shows the char's Unicode name.

The new character engine is a critical improvement, although you may not feel it much in your daily use of emacs. Because of the new character engine, new in emacs 23 are support for languages, encodings, input systems that was not there before. See: list-input-methods, list-coding-systems, list-character-sets, list-charset-chars.

Byte compiled elisp files (byte-compile-file) that contains non-ASCII chars now will not be compatible with emacs 22. This means elisp files that contains non-ASCII chars and is byte compiled in emacs 23, cannot run in emacs 22. However, emacs 22 byte compiled files still runs in emacs 23, because emacs 23 still understand the mule encoding used by 22. You should byte compile your emacs 22's.elc files if you don't plan to use emacs 22 anymore, because it saves a decoding process and loads faster. (if you don't understand this paragraph, you need not worry about it.)

This also means that autosave file are utf-8 encoded, instead of emacs 22's emacs-mule encoding. This means, those “#autosave#” files containing non-ASCII chars can be viewed legibly by any editor that supports Unicode, not just emacs.

The ucs-insert command now has the shortcut Ctrl+x 8 Enter, and it also support wildcard completion on Unicode char names. For example, suppose you are looking for a Unicode char that represent a star. Alt+x ucs-insert, then type *star then Tab, then emacs will list all Unicode char names that have a “star” in it.

International (Emacs Manual)

Emacs Server/Client

Emacs can be run as a server/client. This allows you to start emacs in remote machine, and have multiple terminal emacs instances connected to it, without the delay or resource in starting another emacs instance. You can of course still start multiple emacs full process as before.

Thanks to Károly Lőrentey, Dan Nicolaescu for this great feature.

To launch a emacs server, type emacs --daemon in shell. Or, within emacs, Alt+x server-start. Note that a emacs server simply runs in the background, ready for clients to launch and connect.

To start a emacs client, type emacsclient ~ in shell. Note that you must provide a file name or dir. When a client starts, it starts in text mode in shell, not GUI.

You can set your environment variable “EDITOR” to “emacsclient”, so that, other shell apps such as mail, cron, etc will automatically launch emacs client. Multiple clients can connect to the same server.

On Windows, you start emacs server by first launching emacs, then call the command server-start. Running emacs --daemon in shell is not supported. (The error message is: “This platform does not support the -daemon flag.”)

On Mac, you launch server like this: /Applications/Emacs.app/Contents/MacOS/Emacs --daemon, then client like this: /Applications/Emacs.app/Contents/MacOS/bin/emacsclient ~. Of course, you can setup a alias in Bash to avoid typing the long path. Like this:

alias myemacs='/Applications/Emacs.app/Contents/MacOS/Emacs'

Emacs Server (Emacs Manual)

nxml-mode

nxml-mode by James Clark (http://www.jclark.com/) (XML expert).

This is a superb mode for working with XML documents. It validates your XML as you type.

However, in emacs 23.1.50, the default mode for .xml file is still the old XML mode (xml-mode based on sgml-mode), not nxml-mode. (Fixed in emacs 23.2.x) To fix that, put:

; for xml files, use nxml-mode instead of sgml-mode
(add-to-list 'auto-mode-alist '("\\.xml\\'" . nxml-mode))

Note that James Clark is one of the world's top expert on SGML and XML, author of the widely used Expat XML parser. The nxml-mode + emacs is probably the world's most advanced XML editor.

(info "(nxml-mode) Top")

View System Processes

proced by Roland Winkler, for managing OS processes, similar to dired in managing files.

Start it by Alt+x proced.

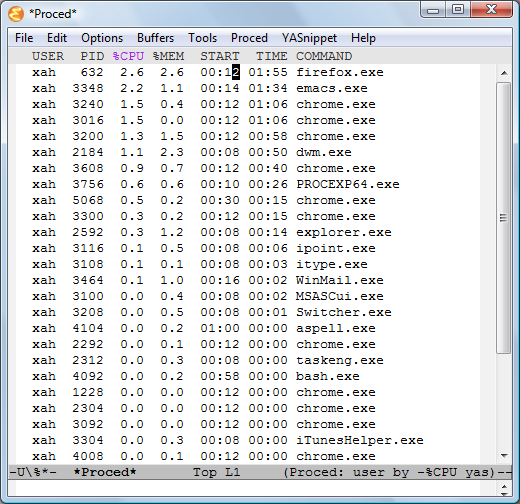

emacs23 proced
Emacs 23's proced mode, showing running processes.

You can click on the column at the top to sort by that. In the mode, Alt+x describe-mode to see its doc string, as usual.

You use it pretty much like dired. Type m to mark the process; Type u to unmark; Type x to send a signal to the process; Type Tab to see what signal you can send.

Be sure to check the menu “Proced” while you are in proced mode.

Note that this feature does not work on Mac OS X out of the box.

Other New Modes

ruby-mode

ruby-mode by Yukihiro Matsumoto (creater of ruby) and Nobuyoshi Nakada.

rst-mode

rst-mode by Martin Blais ❮http://furius.ca/home/❯ et al. ReStructuredText is a lightweight markup format, mostly used in Python community for doc string of code.

doc-view-mode

doc-view-mode by Tassilo Horn. This allows you to view PDF documents within emacs, as well as PostScript and DVI files.

This feature does not work on Windows or Mac OS X out of the box.

If you want it to work out of the box on Windows, use ErgoEmacs.

Document View (Emacs Manual)

Interface to GNU Privacy Guard

EasyPG Assistant (epa) is interface to GNU Privacy Guard.

The tools can be invoked in the menu [Tools ▸ Encryption/Decryption]. To see what command are available, type Alt+x then “epa-” then Tab.

In dired, you can call these function with keyboard shortcuts:

ShortcutPurpose
【:e】Encrypt
【:s】Sign
【:v】Verify
【:d】Decrypt

These are listed in the menu “Immediate” while in dired.

(info "(epa) Top")

Deleting Files to Trash Folder

Deleting files in emacs can now be set so that they move to the Operating System's trash folder

;; deleting files goes to Operating System's trash folder
(setq delete-by-moving-to-trash t) ; “t” for true, “nil” for false

However, this feature has a few problems. When this is on, your trash folder will be filled with tens or hundreds of emacs temp files, such as those “#autosave#” files, “backup~” files, “.emacs.desktop”, “emacs00164”, “server”, etc. Also, when deleting a directory from dired, your system trash will end up with each individual files, instead of just a folder. If the folder has few hundred files, the process will be super slow. This happens at least on emacs for Windows.

Quick Note Taking

Remember mode by John Wiegley. It lets you write down notes quickly. Basically, it is a shortcut that always opens a particular file, so you can press a button and start writing down notes. I don't find this useful.

To start, Alt+x remember. Then type your notes. When done, type Ctrl+c Ctrl+c, then it should save the data to ~/.notes and close the buffer.

(info "(remember) Top")

Linux Specific Features

Support for D-BUS, thanks to Michael Albinus. This feature allows emacs to provide and receive services from other apps. (info "(dbus) Top")

Support for Xesam spec for desktop search. Thanks to Michael Albinus. If you have desktop search tools installed such as Beagle, Strigi, then you can invoke search by the command xesam-search. You'll need to load it first by (require 'xesam).

Support for X11's XEmbed protocol. This means, you can embed emacs in other apps.

Thanks to all the Emacs developers.

Reference
