Misc DIY Keyboards

By Xah Lee. Date: . Last updated: .
ergonomic keyboard DIY 58729

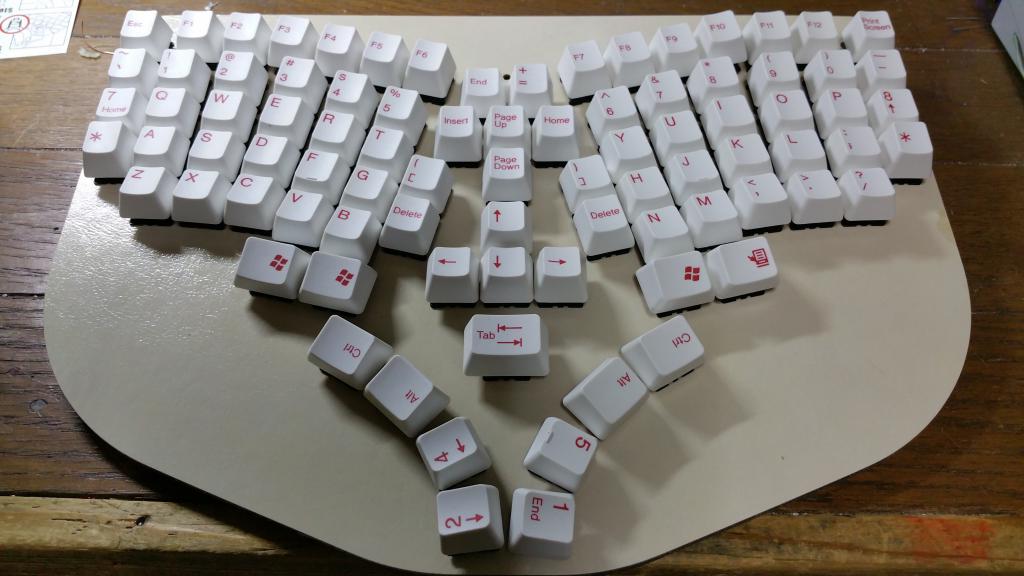

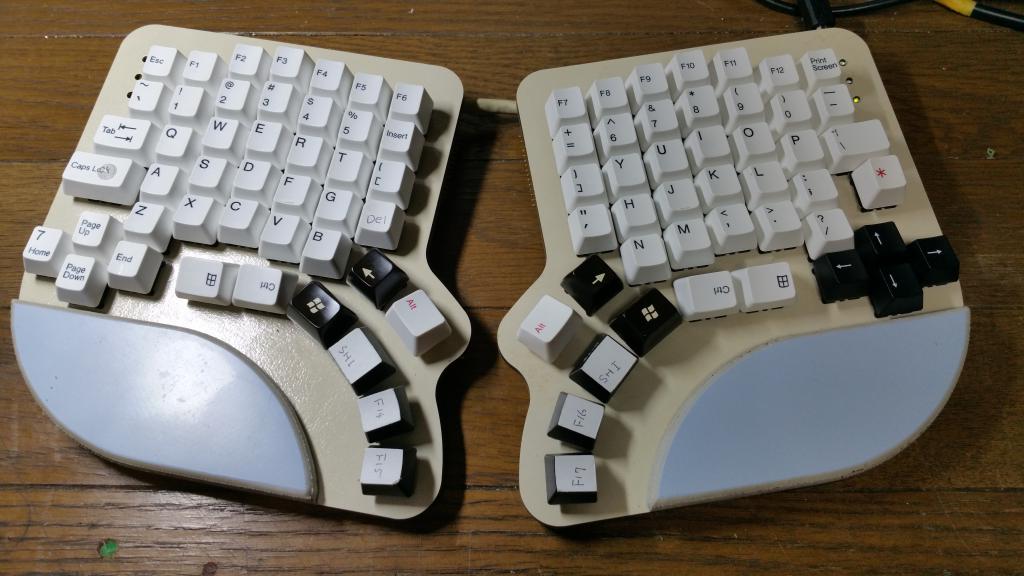

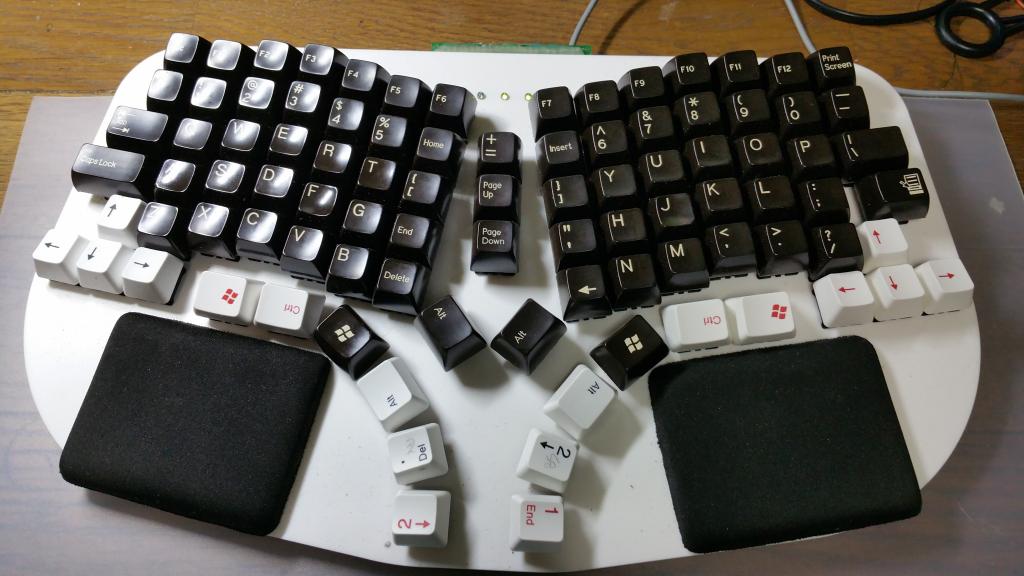

dated around 2016-06-01. not sure where these came from. Found on Japanese forum.
ergonomic keyboard DIY 20210
ergonomic keyboard DIY 63968

Yager Keyboard

yager keyboard 2014-03-19

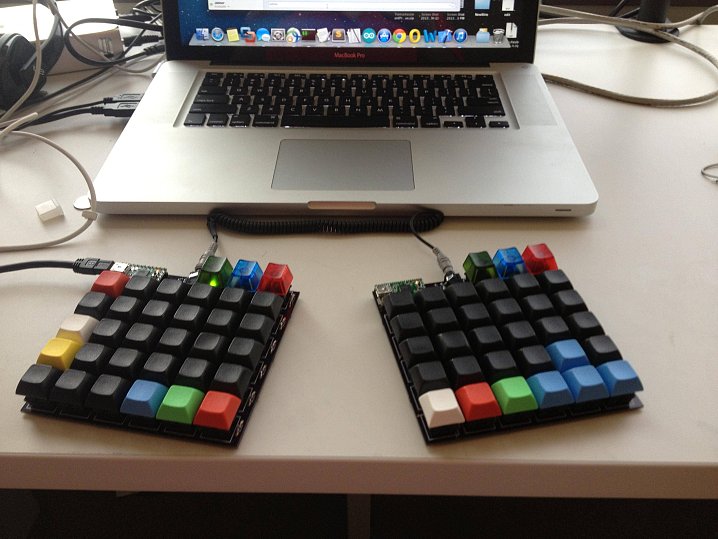

Yager keyboard 2014-03. Key count: 66 keys. http://yager.io/keyboard/keyboard.html

Jesse Heart Keyboard

mark5 heart keyboard jesse 2013-04-19

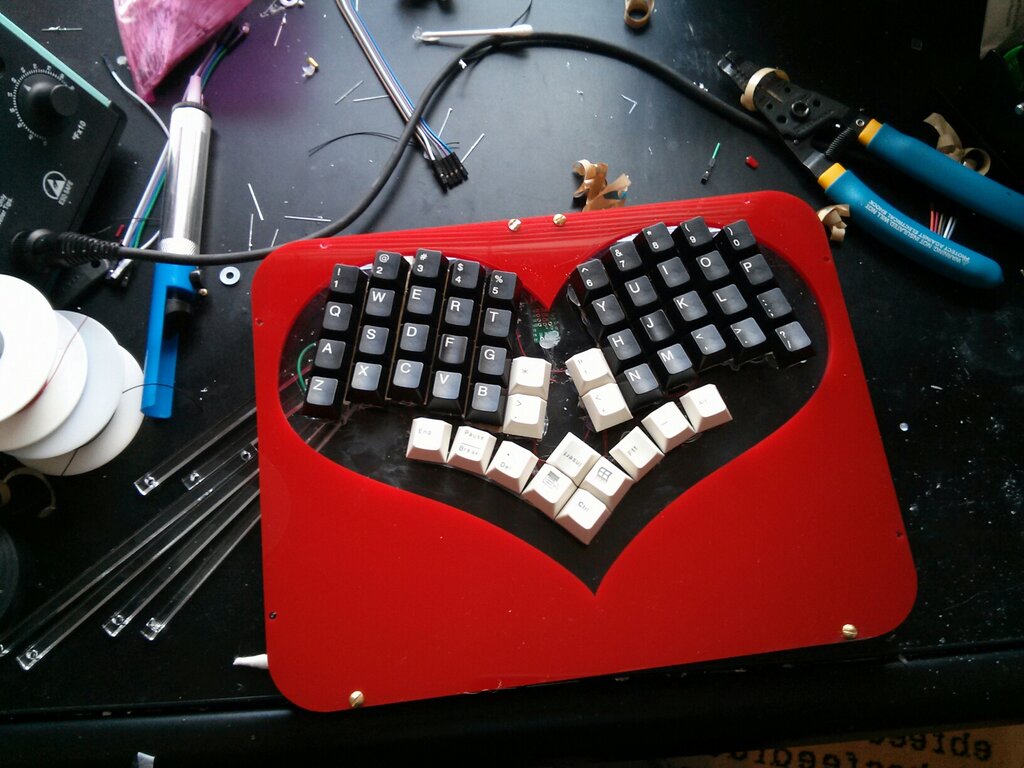

Mark5 heart keyboard Jesse Vincent . Key count: 54 keys. [image source flickr © [https://creativecommons.org/licenses/by-nc-sa/2.0/legalcode]]

this is precursor to Keyboardio

Jesse Butterfly Keyboard

this is precursor to Keyboardio

Jesse Vincent butterfly keyboard 2014
Butterfly keyboard by Jesse Vincent. Key count: 60 keys. [image source flickr © [https://creativecommons.org/licenses/by-nc-sa/2.0/legalcode] ]

The design gets better and better. The butterfly keyboard has great thumb keys, but has a novel innovation: palm key! You just push down your palm to activate it.

Jesse Vincent is a famous perl programer. See Wikipedia: [ Jesse Vincent ] [ https://en.wikipedia.org/wiki/Jesse_Vincent ]. Jesse has a blog at http://blog.fsck.com/

Jesse plans to manufacture them. For news, see: http://launch.keyboard.io/

Mark4 keyboard

this is precursor to Keyboardio

mark4 keyboard 2013-04-19

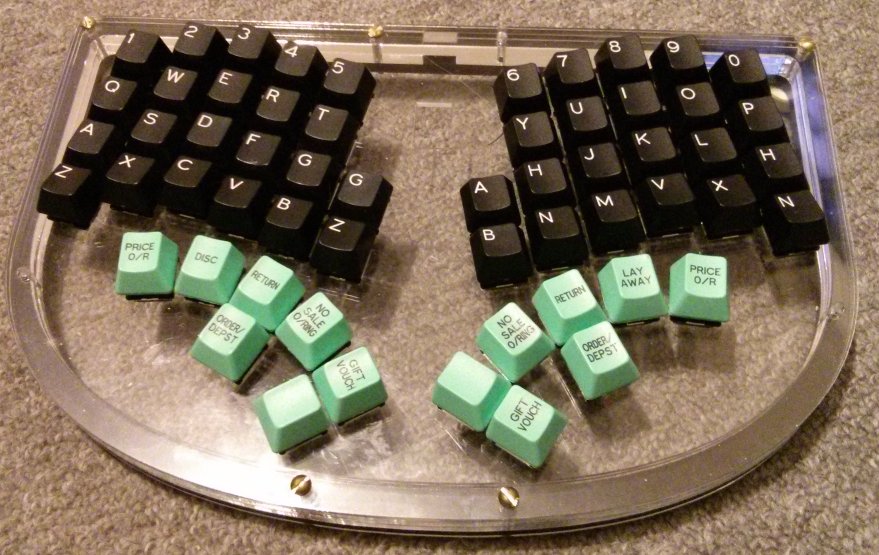

Mark4 keyboard . Key count: 58 keys. Photo by Jesse Vincent. [image source flickr © [https://creativecommons.org/licenses/by-nc-sa/2.0/legalcode]]

Space Station Keyboard

diy ergonomic keyboard common 172 banner
The keyboard from space. Key count: 85 keys. From a Chinese keyboard forum. http://www.likeyboard.com/forum.php?mod=forumdisplay&fid=172

Let's call this the Space Station keyboard.

Nicolas Tavlas Keyboard

Star Trek keyboard?

the image is dated around 2012.

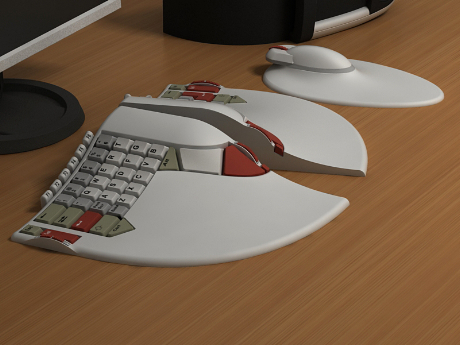

ergo keyboard  nicolas tavlas 1 ergo keyboard  nicolas tavlas 2 ergo keyboard  nicolas tavlas 0
from http://www.techpin.com/the-ergo-keyboard-from-nicolas-tavlas/

Hard to find info about this keyboard. Not sure if it's just a computer rendered design.
