DIY Keyboards
DIY μTRON Keyboard
By Xah Lee. Date:
2018-11-05
. Last updated:
2021-03-19
.
Do It Yourself μTron keyboard. Began around 2018.

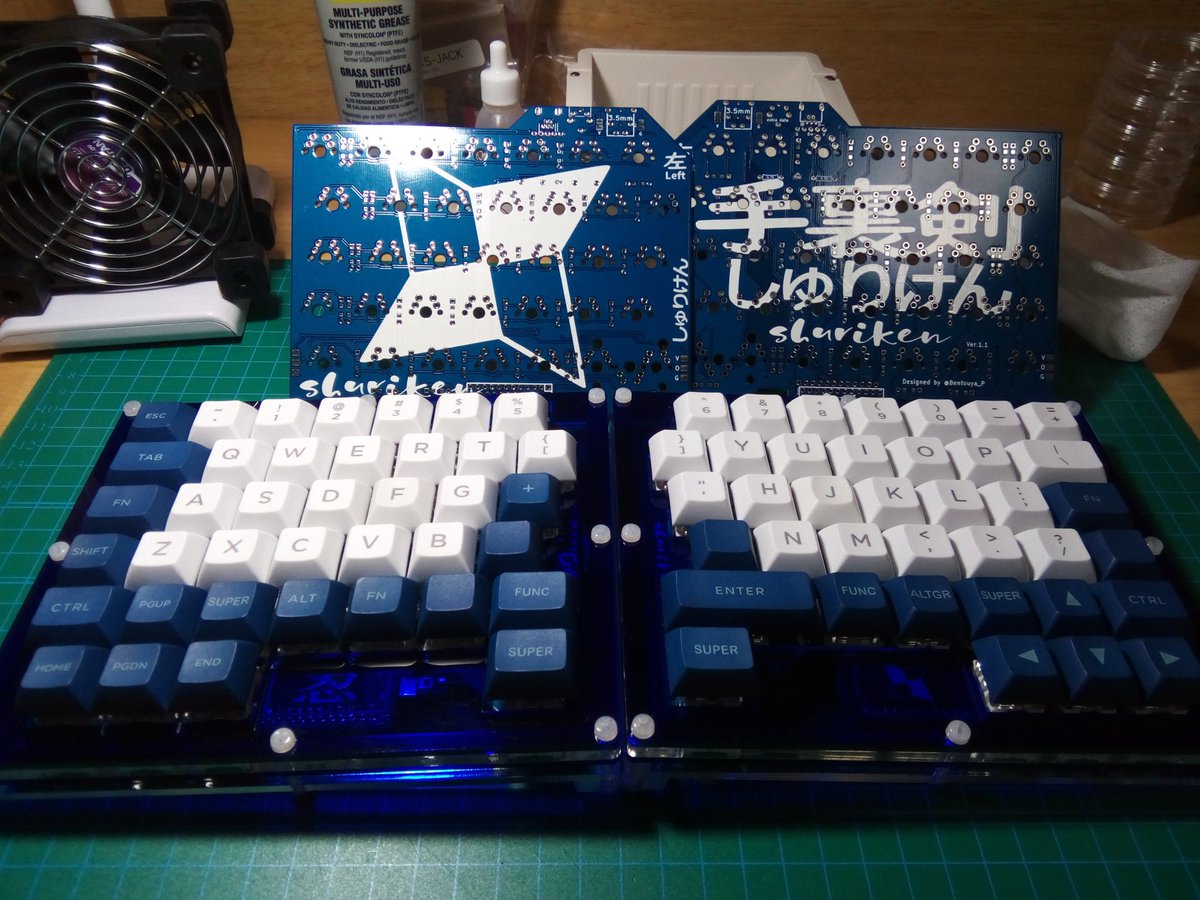

DIY μTron keyboard [image source
https://twitter.com/satromi/status/1058625812746797056
]
Total key count: 76.

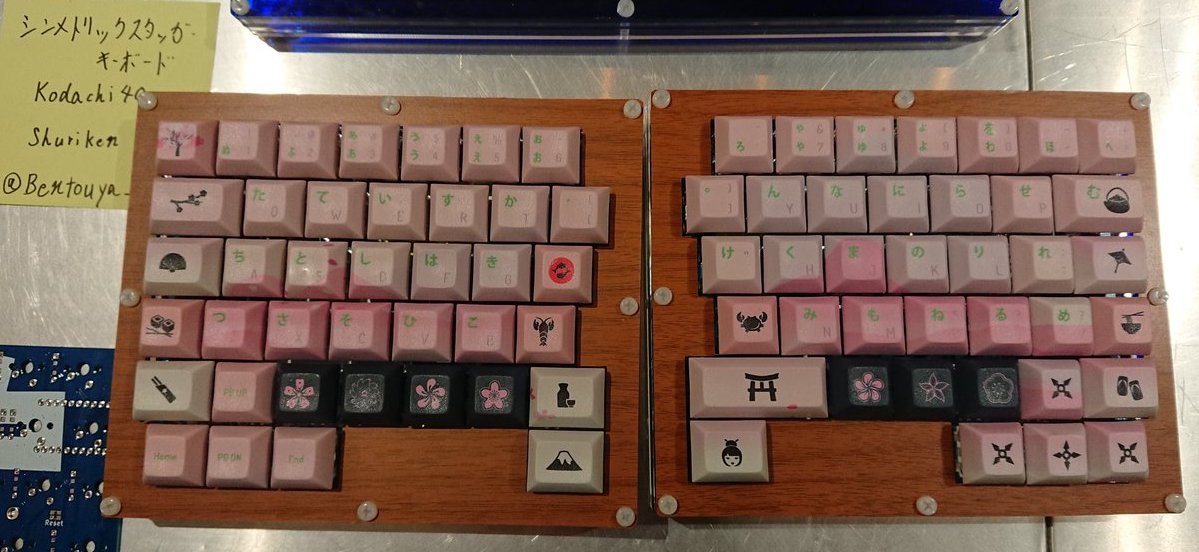

DIY μTron keyboard [image source
https://twitter.com/Bentouya_P/status/1018801859891351554
]

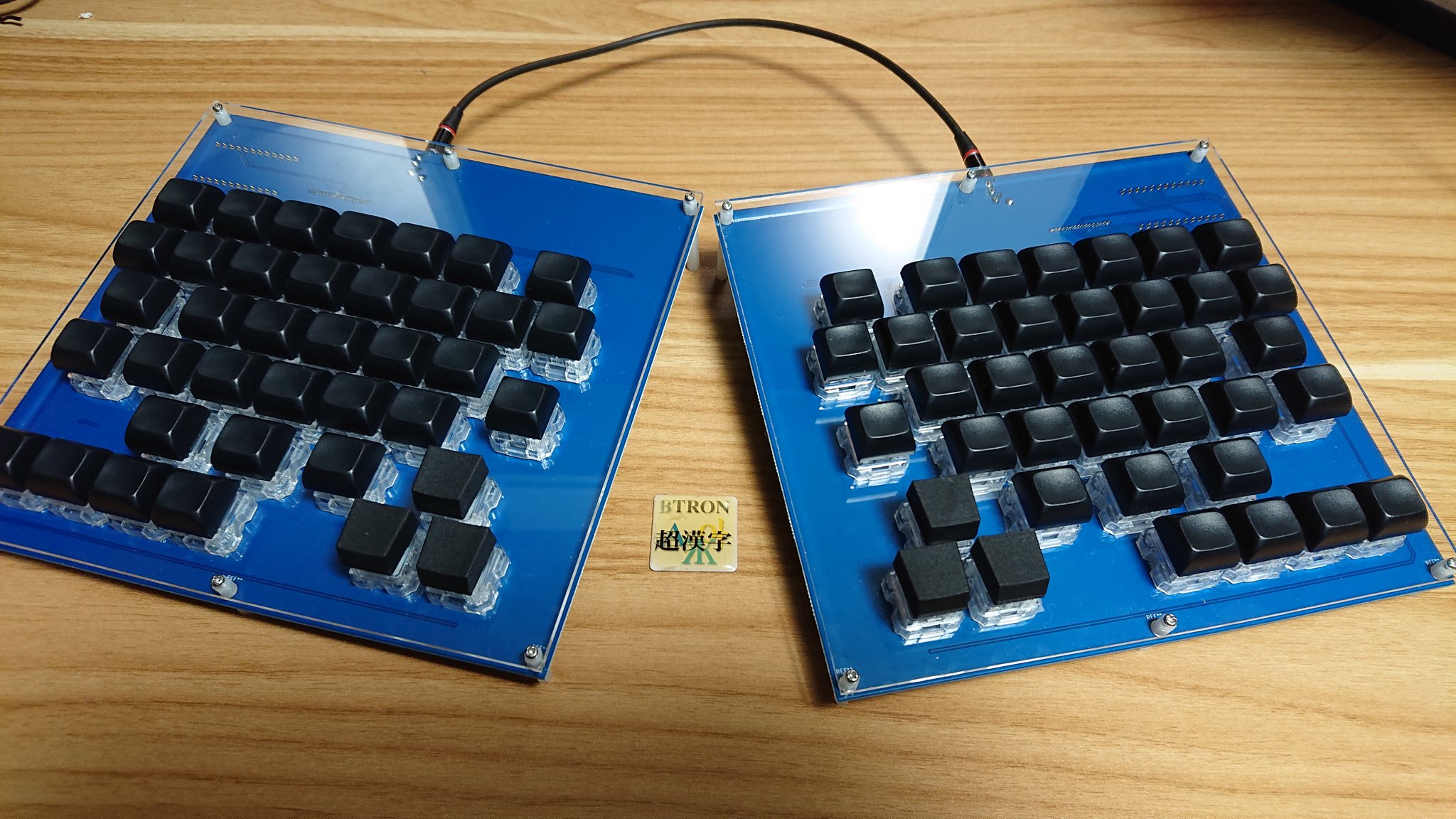

DIY μTron, with home-made electro-capacitance switches. Keyboard: micro TL Split Keyboard 18mm Rev0
Switch: NIZ EC Switch + Bit Trade One 45g Rubber Dome
Keycap: TEX ADA ABS 0.8U + TL Split Keyboard Keycap
[image source
https://twitter.com/satromi/status/1372868053076119554
]
DIY electro-capacitance switches, NIZ EC switch with BTOs spring https://bit-trade-one.co.jp [image source
https://twitter.com/satromi/status/1372864885374156804
]
See also:
μTRON, 2007
