SpaceOrb 360

By Xah Lee. Date: . Last updated: .

This device, is rather silly.

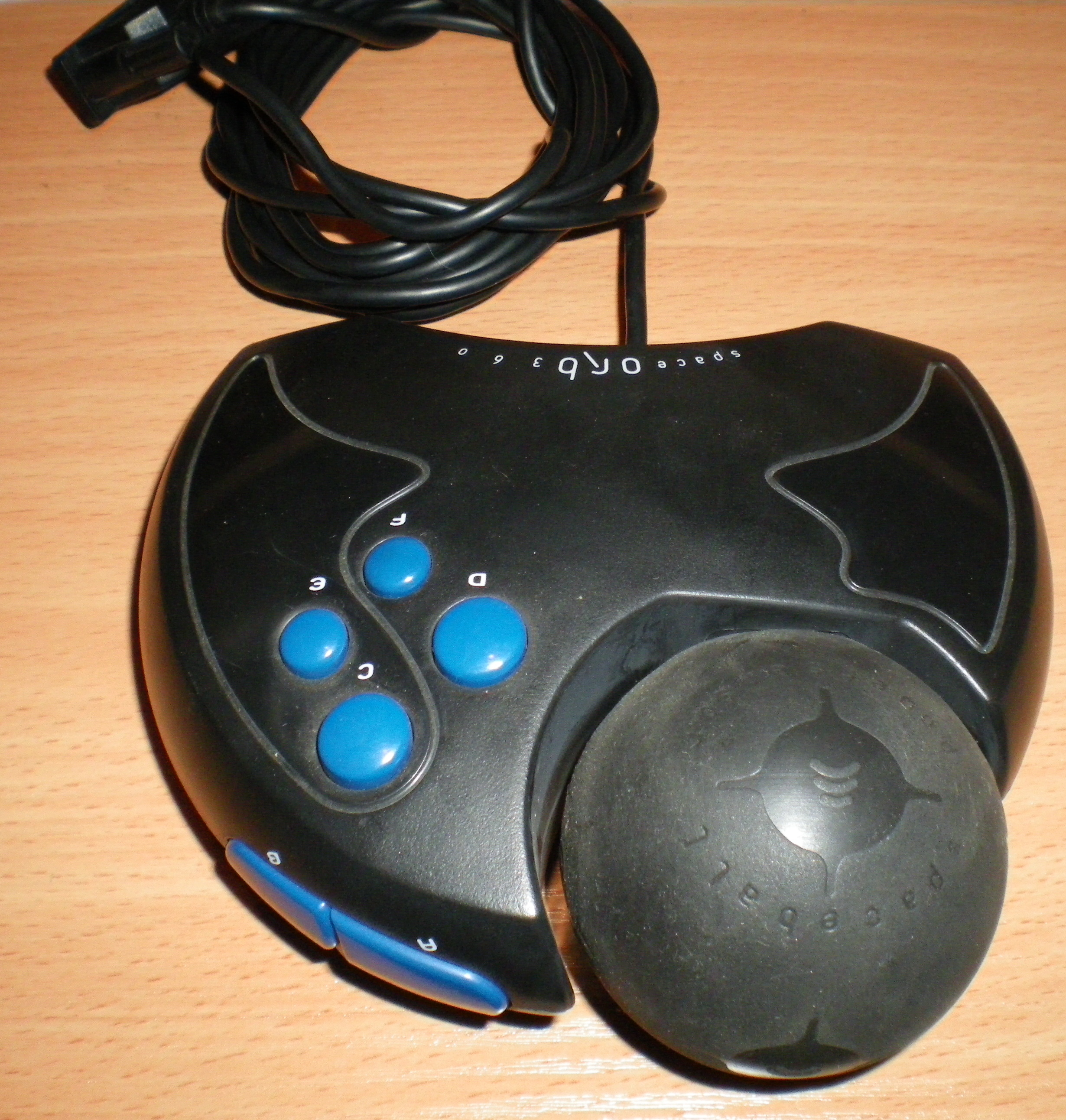

SpaceOrb 360-68931-s
SpaceOrb 360. [image source File:Spaceorb360-3.JPG ]

The big ball there, is really not a free ball, but, a joystick in the shape of a ball. It is attached to the device at the base with a stick. The ball shape, lets you twist and push/pull the joystick.

The tech was eventually transferred to Sony and renamed ASCII Sphere 360.

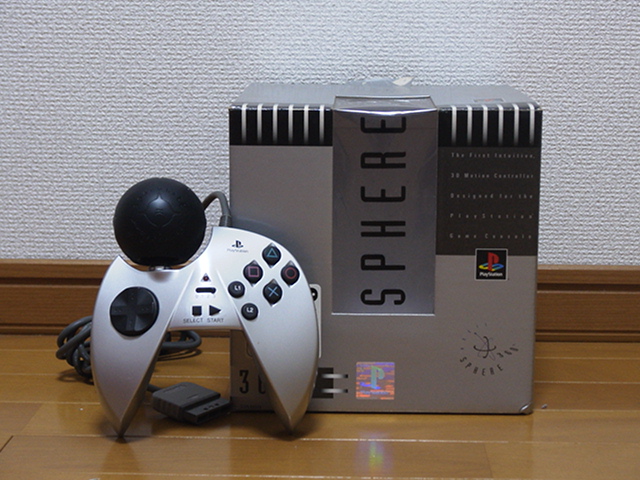

ASCII Sphere 360-13893
ASCII Sphere 360
SpaceOrb 360, re-made and renamed ASCII Sphere 360.

The SpaceOrb 360 is a 6DOF computer input device that is designed to be operated with two hands. Each of the 6 axes have 10-bit precision each when measuring the amount of force or torque applied. It has two right-index-finger buttons and four right-thumb buttons. It interfaces with a computer through an RS-232 serial port using a custom binary protocol. Drivers for the device exist for Mac OS, MS Windows and Linux. Logitech had similar 6DOF devices during the same time period called the Cyberman and Cyberman II.

The device was released in 1996, the same year as popular 3D games such as Descent II and Quake. It was originally called the Spaceball Avenger II, a sequel to SpaceTec's Spaceball Avenger. [1][2] The SpaceOrb was especially suited for the gameplay of Descent because of the complete freedom-of-motion afforded by its rendering engine. There was strong support for the device in both Quake and Quake II, but the WASD-type keyboard-and-mouse controls eventually became more popular. As of the Half-Life engine (based on the original Quake source), there was specific support for the SpaceOrb's capabilities. Developers later started to drop variable movement speed support, which reduced the 10bit translation force measurement to 1bit per direction.

It was originally manufactured and sold by the SpaceTec IMC company (first bought by Labtec, which itself was later bought by Logitech). The device is no longer sold nor supported by Logitech. It has been supplanted by more modern devices sold under Logitech's 3Dconnexion brand, which are all one-handed 3DMice that afford the other hand the freedom to interact with the keyboard/mouse.

Recently fans of the SpaceOrb controller have designed an Arduino add on that makes a SpaceOrb available over USB, which makes it compatible with modern operating systems.[3]

ASCII Sphere 360

Agetec (formerly Ascii Entertainment) licensed the SpaceOrb 360 design and technology to manufacture the ASCII Sphere 360 model for the original Sony Playstation.

〔from SpaceOrb 360

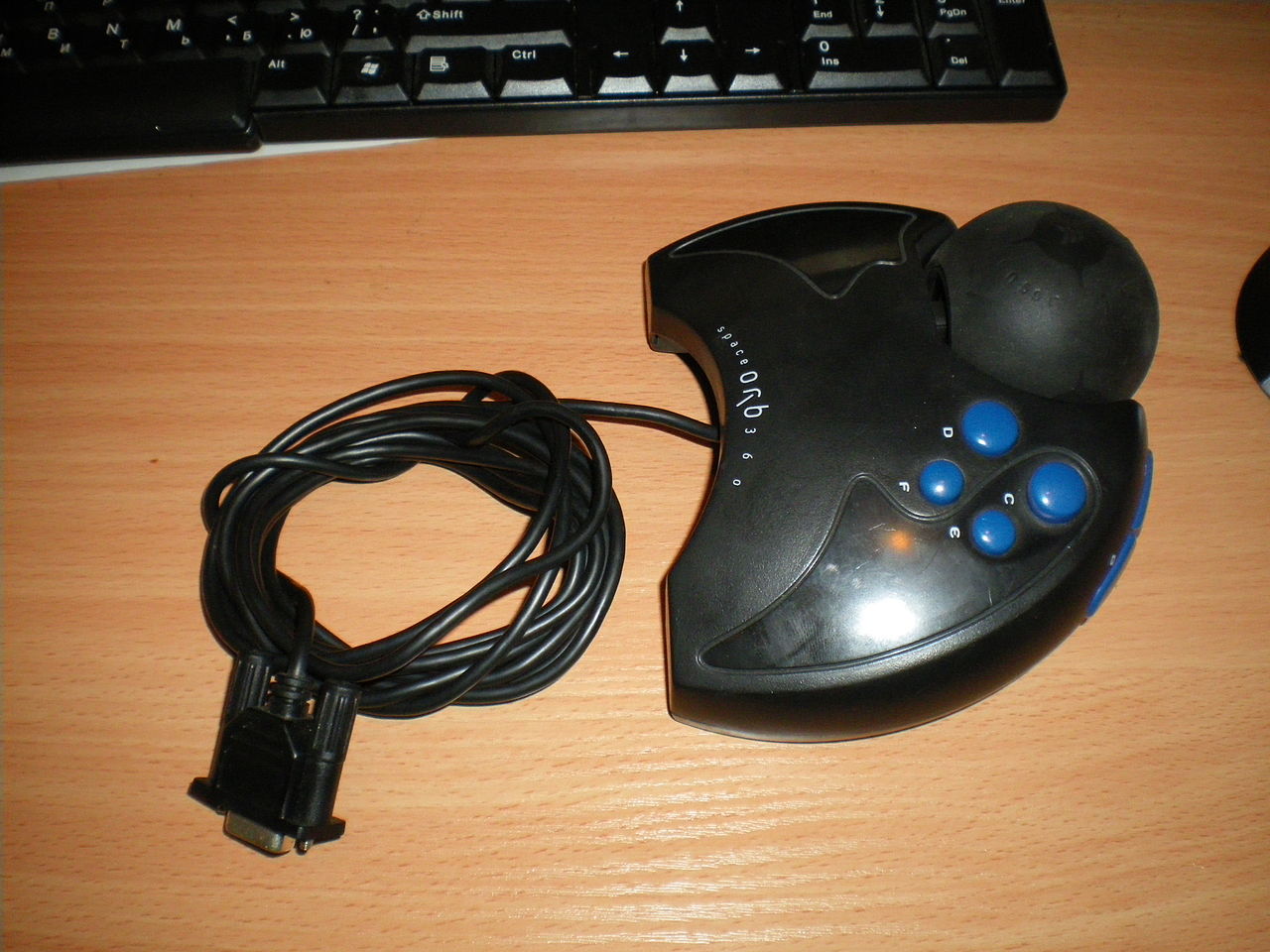

SpaceOrb 360-56524
SpaceOrb 360. [image source File:Spaceorb360-3.JPG ]

The space orb eventually became this

SpaceNavigator 68024
SpaceNavigator 3d Mouse
