By Xah Lee. Date: . Last updated: .

The DataHand came out in 1995, by DataHand Systems, Inc. Created by Dale J Retter.

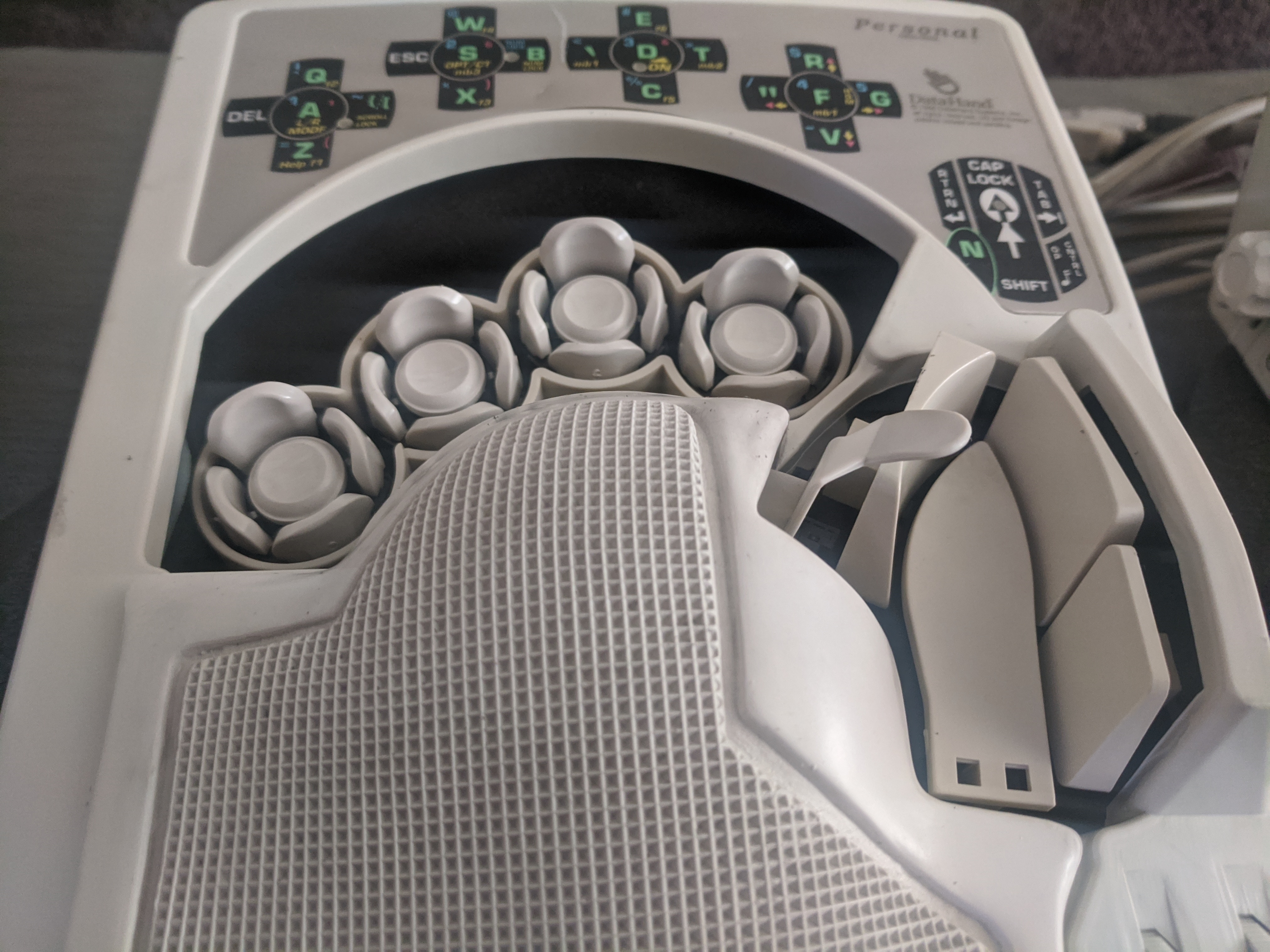

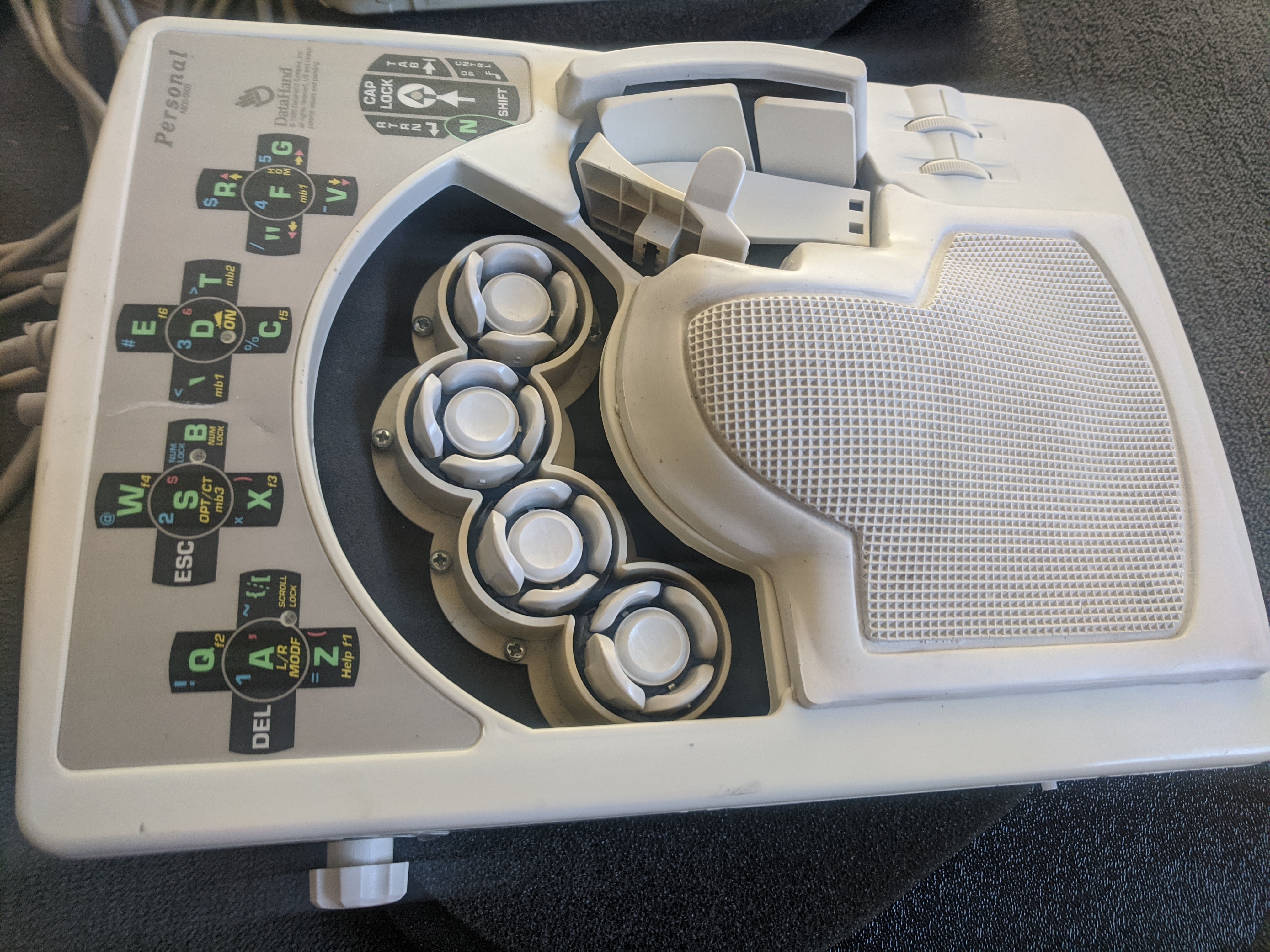

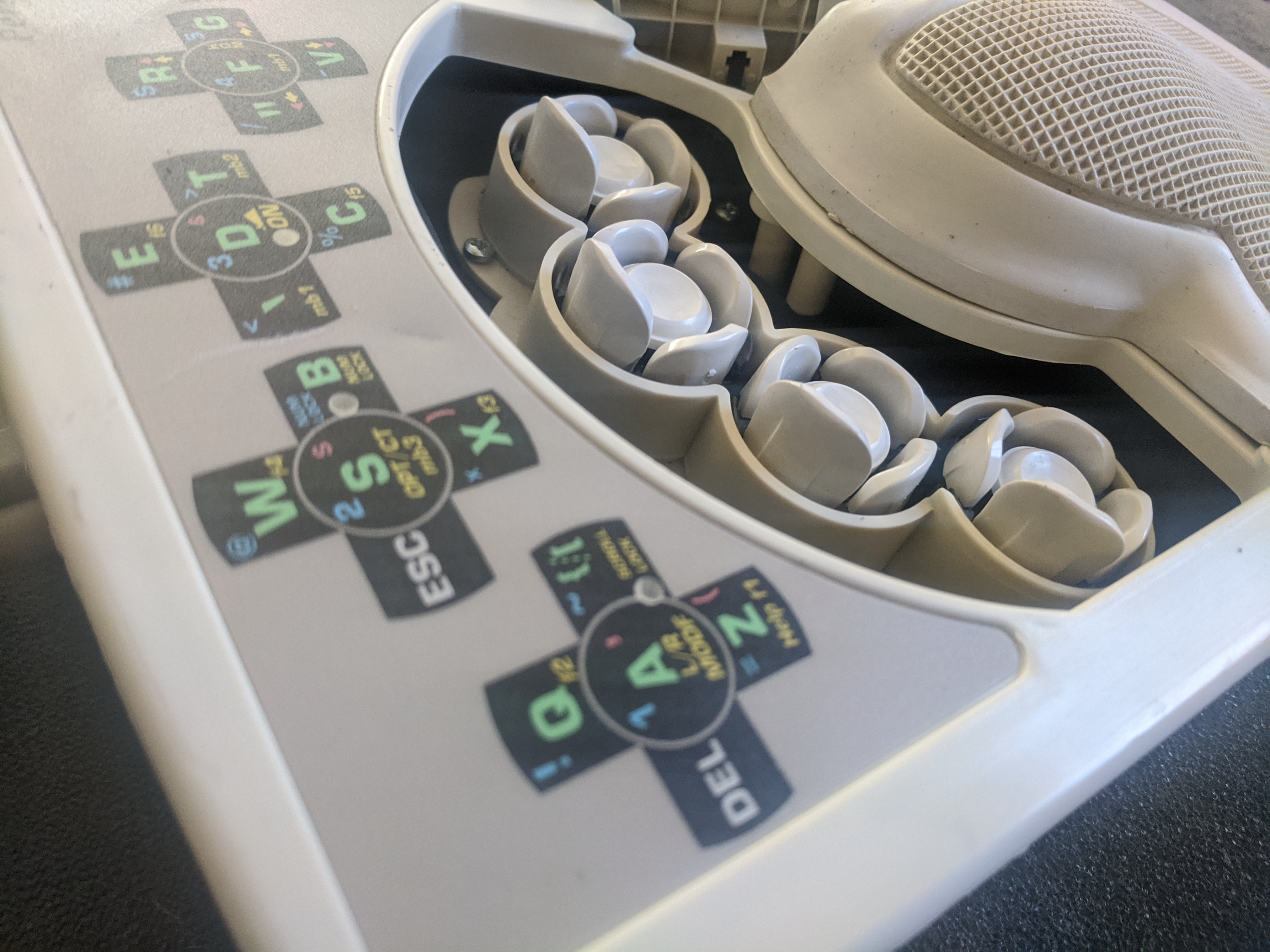

DataHand is a special input device, where each finger fits into a hole, and the hole has 4 wall-buttons on the {north, south, east, west} sides, like 4-direction joystick, plus it can be pressed downward.

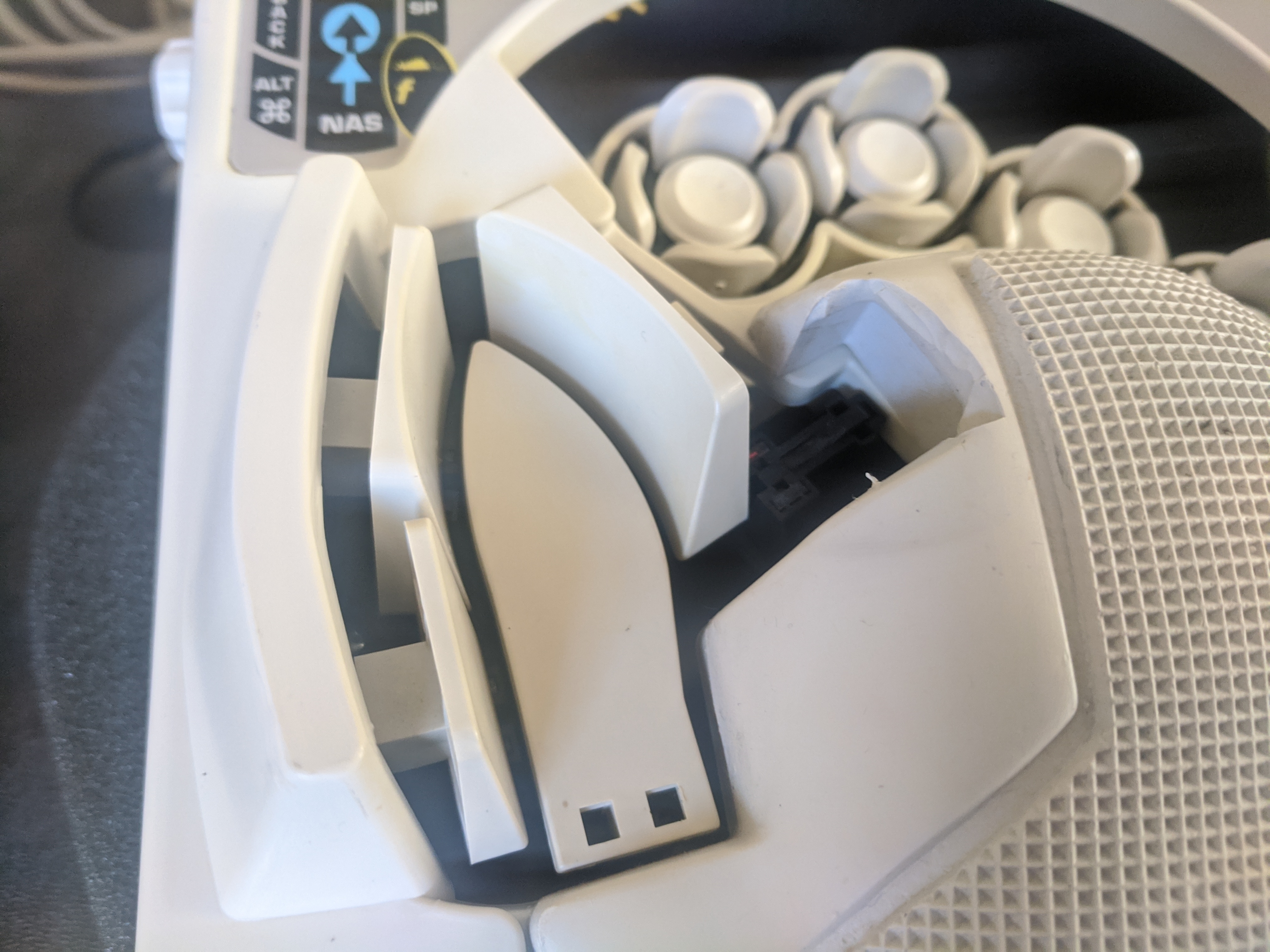

Each thumb also have five buttons: one inside (thumb bent inward), two outside, up and down.

DataHand costs about 1200 USD around year 2000, and is no longer made around 2009.

datahand 9z3p5-s1155x866
datahand 9z3p5 4048×3036

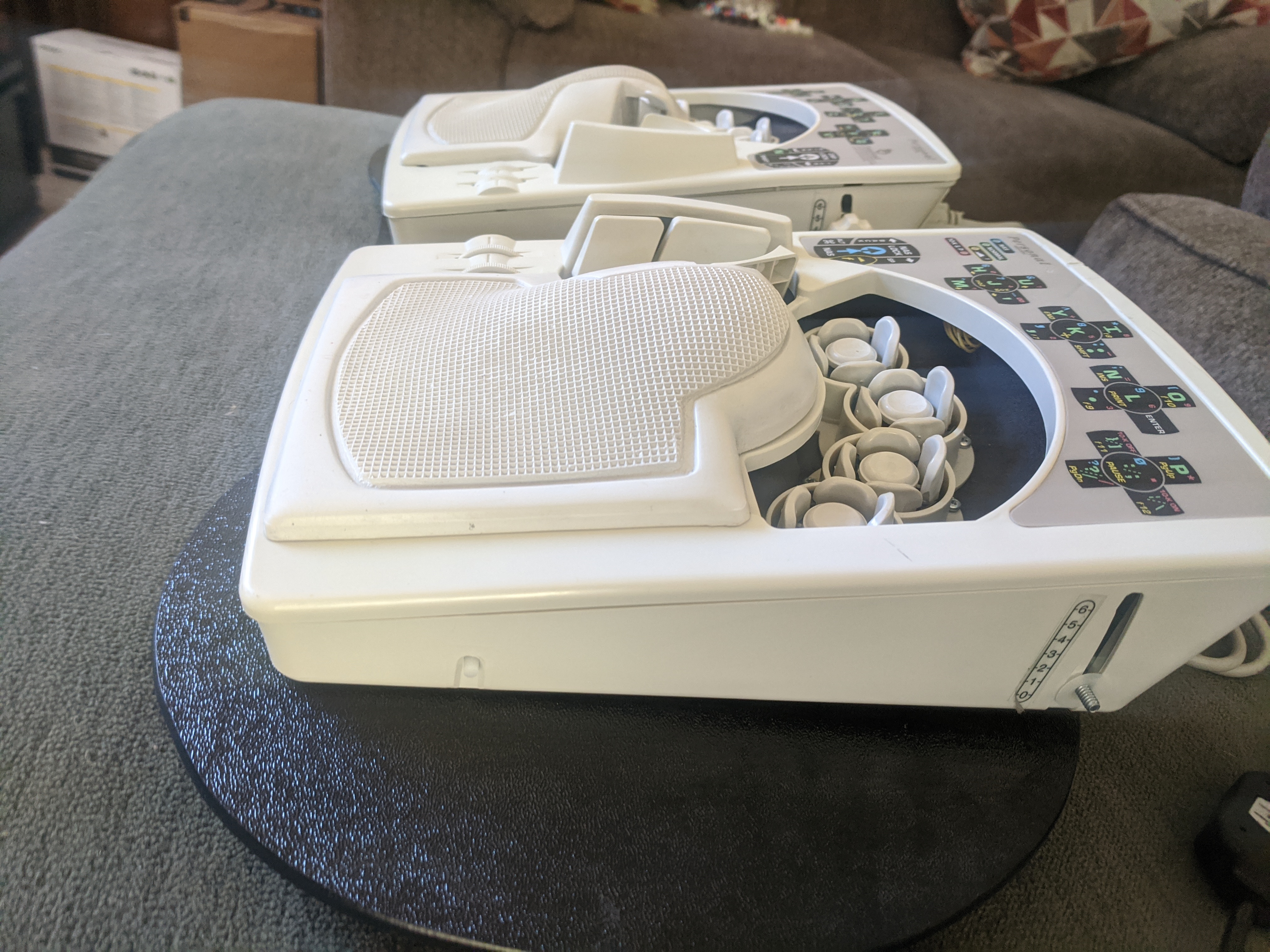

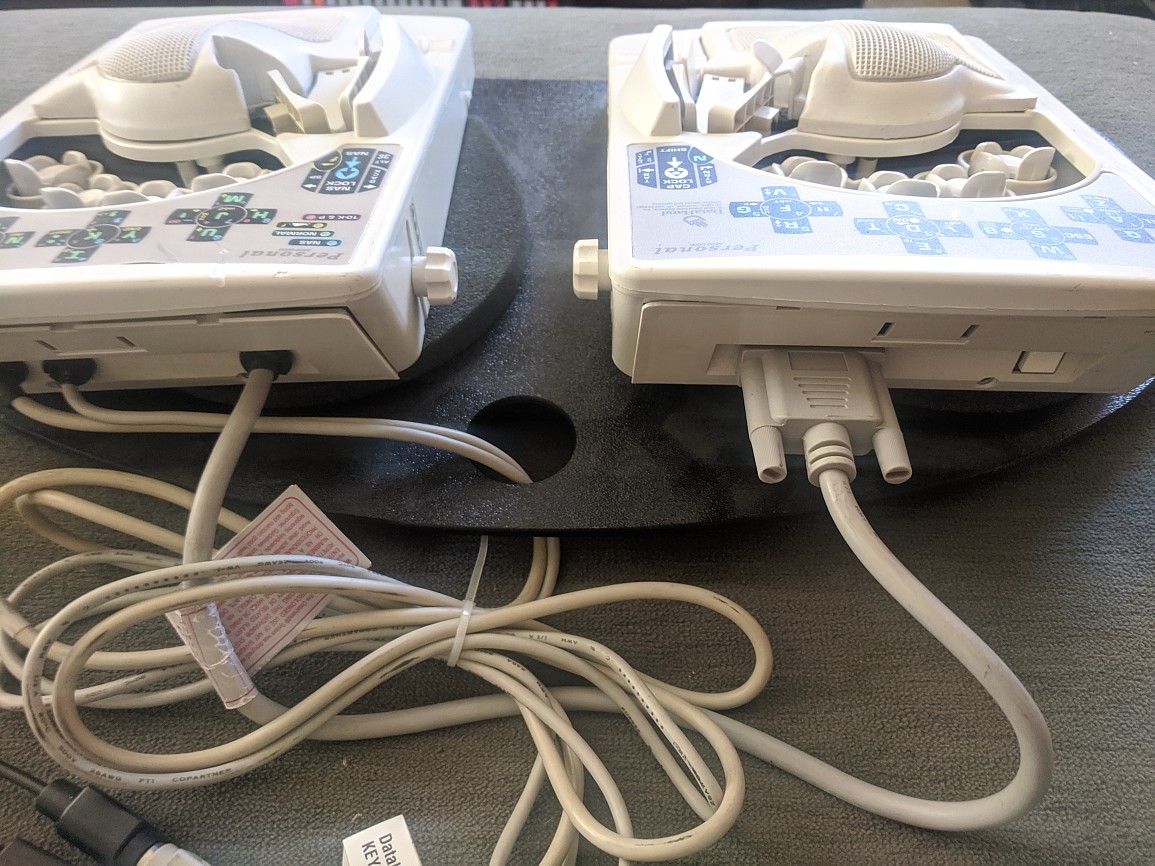

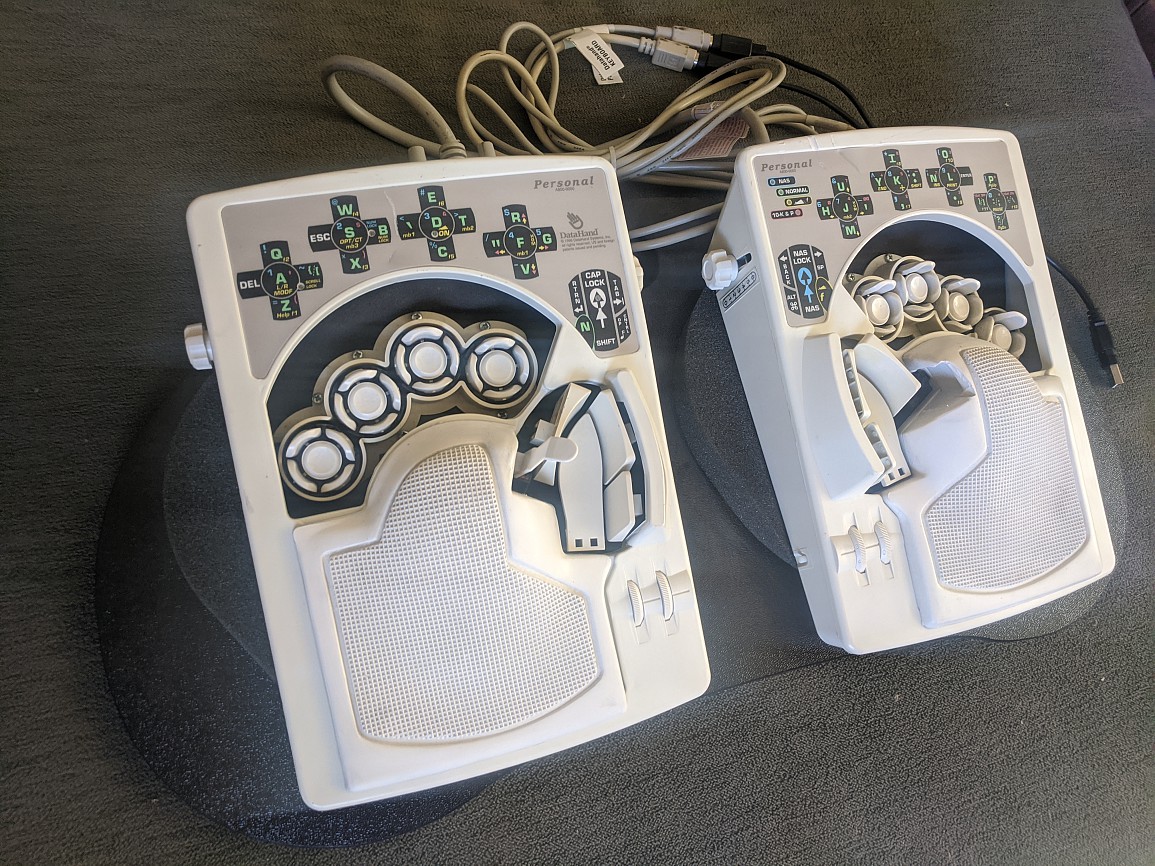

The DataHand is an unconventional computer keyboard introduced in 1995 by DataHand Systems, Inc, designed to be operated without any wrist motion or finger extension. It was invented by Dale J. Retter and produced by Industrial Innovations as early as 1992. It consists of two separate “keyboards”, one for the left hand and one for the right. Each finger activates five buttons: the four compass directions as well as down. The thumbs also have five buttons: one inside, two outside, up and down.[1]

The layout is initially similar to a QWERTY keyboard, but the middle two columns of keys (i.e. H,Y,G…) have been delegated to sideways finger movements, and all of the keys outside of the main three rows are accessed through two additional modes, including a mode for mousing. There are three primary modes all together: letters, number and symbols, and function / mouse mode. Some practice is required. However, eventual typing speedups are possible.[citation needed] The right-hand of a Professional II keyboard

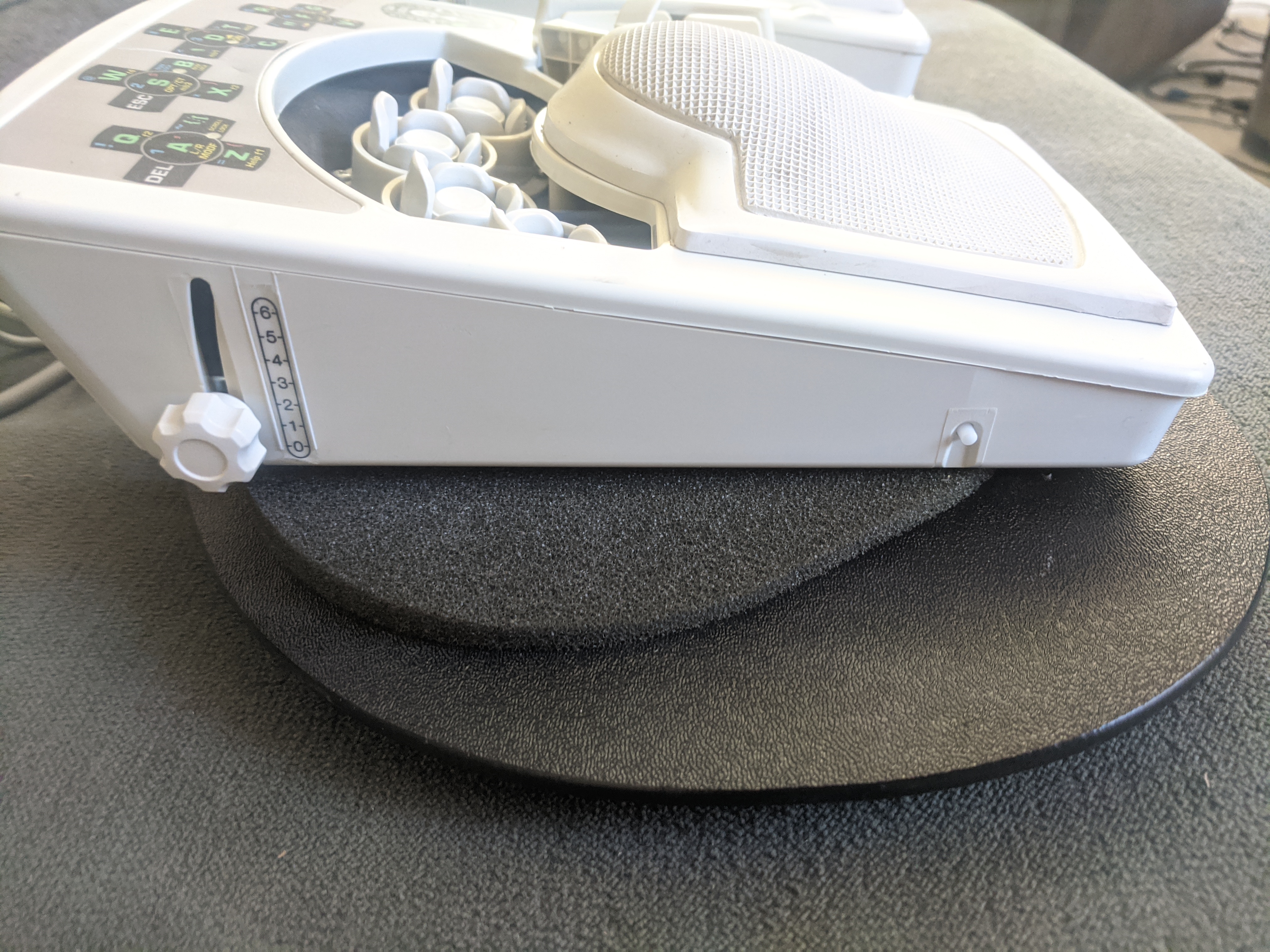

Rather than being spring-loaded, the buttons are held in place with magnets and are activated using optical sensors. This was done in order to reduce the finger workload while still giving tactile feedback. The button modules in which the fingers rest are adjustable—each side can be independently moved vertically or forward and back.[2]

After the initial prototype was released in 1995, DataHand released the Professional and Professional II models with new bodies. The Professional II also has extended programming capabilities over the Professional, being able to record macros of keystrokes for convenient use.

DataHand Systems, Inc. announced in early 2008 that it was ceasing to market and sell its keyboards. The company web site states that due to supplier issues, the company will not sell the DataHand keyboard “until a new manufacturer can be identified”. However, the company plans a final, limited production run to satisfy existing customers. In January 2009, the company's website started taking orders for a “limited number of new DataHand Pro II units”.

source 2022-05-16 []

datahand wnx34-s1155x866
datahand wnx34 4048×3036
datahand ww7j2-s1155x866
datahand ww7j2 4048×3036
datahand 3qjd2-s1155x866
datahand 3qjd2 4048×3036
datahand gh84z-s1155x866
datahand gh84z 4048×3036
datahand j7zpj-s1155x866
datahand j7zpj 4048×3036
datahand hhrnf-s1155x866
datahand hhrnf 4048×3036
datahand 3799q-s1155x866
datahand 3799q 4048×3036
datahand z9zfy-s1155x866
datahand z9zfy 4048×3036
datahand v8fn2-s1155x866
datahand v8fn2 4048×3036

photos above from

datahand jesse vincent g24fj-s1270x953

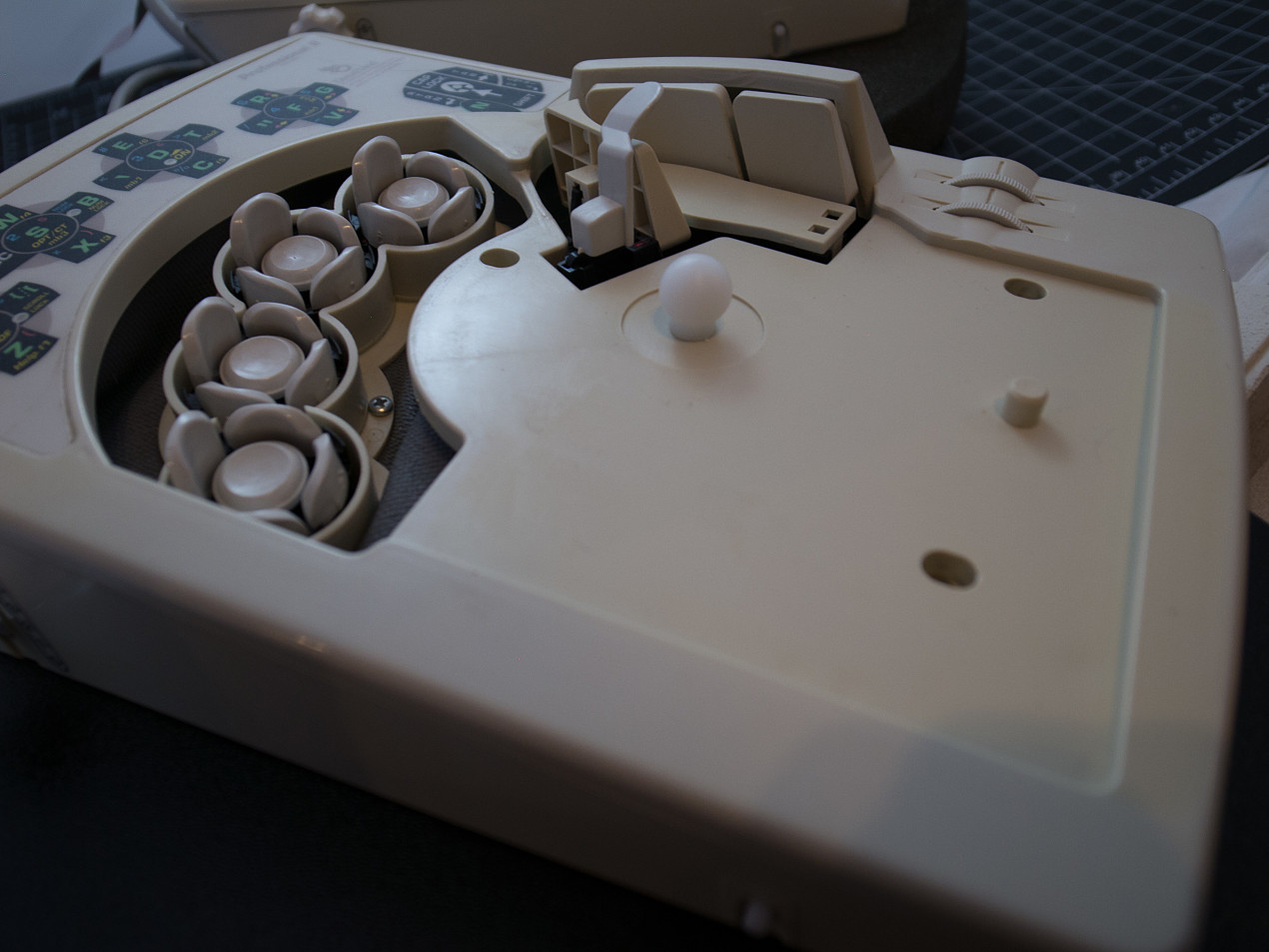

3648×2736 [image source flickr by Jesse Vincent]

Movie: Contact (1997)

movie Contact 1997 DataHand Qqj6t
movie Contact 1997, showing Datahand keyboard.
