Using Piano to Type Text

By Xah Lee. Date: . Last updated: .

Of my 10+ years obsession studying keyboard efficiency, including steno, i think nothnig beats using piano for typing.

PianoText: transferring musical expertise to text entry. Association for Computing Machinery (ACM)

more video:

PianoText - Turn your Piano into a Typewriter

Inspired by the high keying rates of skilled pianists, we study the design of piano keyboards for rapid text entry. We review the qualities of the piano as an input device, observing four design opportunities: ① chords, ② redundancy (more keys than letters in English), ③ the transfer of musical skill and ④ optional sound feedback. Although some have been utilized in previous text entry methods, our goal is to exploit all four in a single design. We present PianoText, a computationally designed mapping that assigns letter sequences of English to frequent note transitions of music. It allows fast text entry on any MIDI-enabled keyboard and was evaluated in two transcription typing studies. Both show an achievable rate of over 80 words per minute. This parallels the rates of expert Qwerty typists and doubles that of a previous piano-based design from the 19th century. We also design PianoText-Mini, which allows for comparable performance in a portable form factor. Informed by the studies, we estimate the upper bound of typing performance, draw implications to other text entry methods, and critically discuss outstanding design challenges.

The learning time required to achieve 80 word per minute is less than learning touch-type on QWERTY keyboard.

And, the learning time to achieve 200 wpm seems comparable to Stenotype Machine.

[see Stenotype Machine]

Basic Key Maps

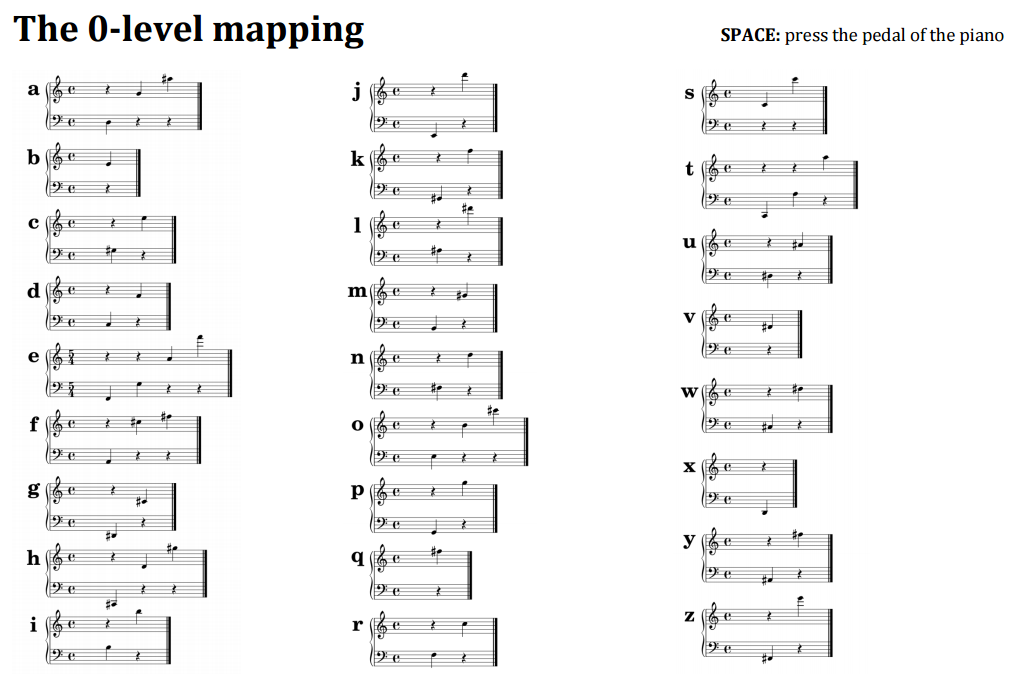

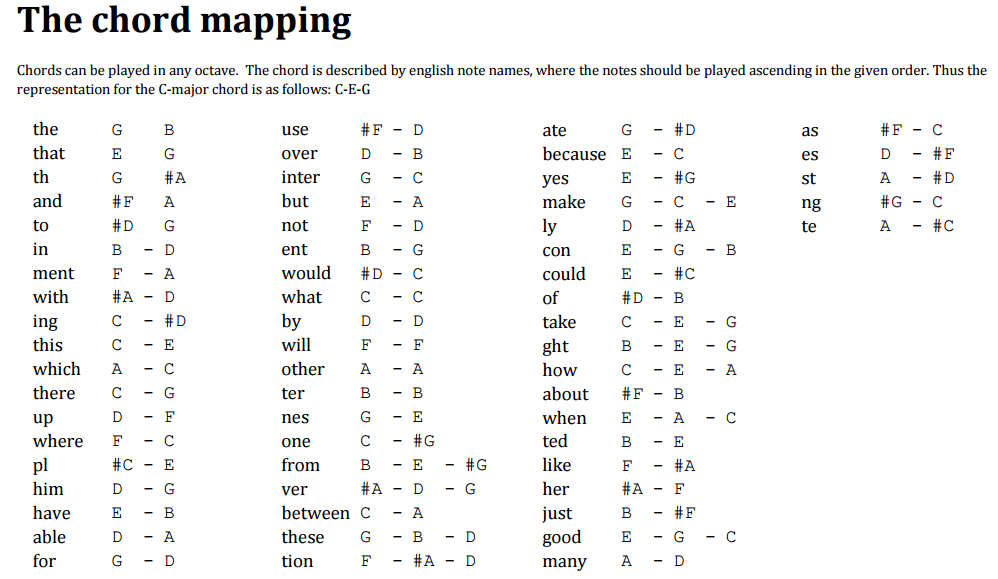

pianotext key map cheatsheet 1 pianotext key map cheatsheet 2
pianotext key map cheatsheet.

If you don't know how to read music, it's pretty easy. See

How to Read Music Sheet

Get Software and Try It

Their website is http://annafeit.de/pianotext/

You can download software to try it.

I haven't tried it yet.

It seems the primary author is Anna Maria Feit. On twitter at https://twitter.com/AnnaFeit

Here's the academic research report, published by Association for Computing Machinery:

[PianoText: Redesigning the Piano Keyboard for Text Entry By Anna Maria Feit, Antti Oulasvirta. At http://xahlee.info/kbd/PianoText_DIS14.pdf , accessed on 2016-05-09 ]

How to Shop a Piano Keyboard for Typing

You'll need a MIDI keyboard with at least 3 octaves (36 keys). (1 octaves has 12 keys. 5 black keys and 7 white keys.)

If you never had a music keyboard before, here's a introduction.

(MIDI (Musical Instrument Digital Interface) is standard for musical instruments to connect. It's analogous to USB. Today's MIDI devices use USB interface.)

For a basic MIDI keyboard at a price range of a cheap mechanical keyboard, this one is best seller on amazon. Good reviews. Only 6.7 pounds (3 kg) shipping weight.

M-Audio keystation 49 midi keyboard 52318
M-Audio keystation 49 MIDI keyboard. Buy at amazon

Note, the above is a MIDI keyboard controller. It doesn't have any sound by itself.

If you want something that also have sounds as musical keyboard, get some cheap one, above $100 and below $200. yamaha keyboard

you can go for more pro, but gets expensive.

Desired features for typing use are:

Here's some varieties.

If you are serious about using piano keyboard for typing, i only recommend the pro stuff. Get MIDI controller such as the above, or synth keyboard. Don't buy the consumer stuff. Because, the key mechanism of a piano keyboard or digital/synth keyboard is a HUGE DEAL , far bigger deal than computer keyboard mechanism. You want a piano keyboard that you can type for long, can feel it, control the key velocity (expressiveness), etc. Your hand will get tired if you use cheap consumer keyboard of few hundred dollars.

I would actually just recommend you buy a “MIDI Controller” for typing. That is, when you search amazon, just search “MIDI Controller”. MIDI Controller is just a keyboard dedicated as a input device. It is meant to connect to a synthesizer to actually create sound or perform. MIDI Controller is particularly suited for use as typing, because it is actually a dedicated device for it. You pay for the quality key and mechanism only. If you want sound or actually learn music, i recommend that being a separate process. The one i recommend above, the: M-Audio keystation 49 MIDI keyboard Buy at amazon, is actually perfect. Cheap, small, light weight, just right for our purpose.


Programing MIDI to Type Text

here's some video and articles about how to turn a midi keyboard to type text.

These articles are not related to the above.

Hello World: A Suite For Visual Studio in C# Minor

http://elekslabs.com/2014/06/programming-on-a-keyboard-a-piano-keyboard.html

Akai MPK Mini MKII keyboard controller 71
Akai Professional MPK Mini MKII 25-Key Ultra-Portable USB MIDI Drum Pad and Keyboard Controller with Joystick Buy at amazon
