Ergodox Keyboard with Trackball

By Xah Lee. Date: . Last updated: .
ergodox keyboard red trackball tray

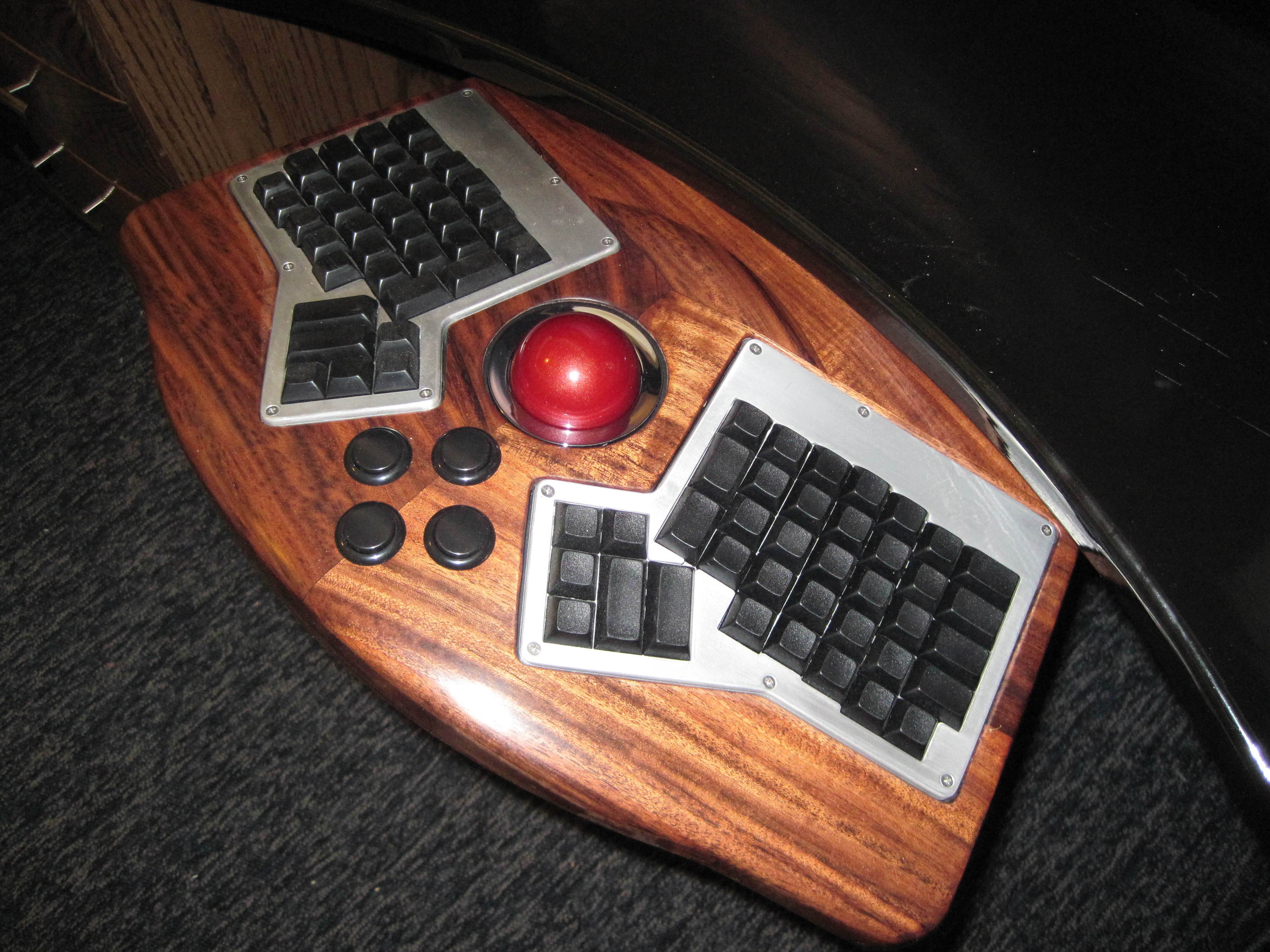

Ergodox keyboard trackball tray. 3648×2736 (built by Kurt Plubell (aka kurplop), photo by kurplop, , img src geekhack.org)

The red trackball is probably from Slimblade Trackball

ergodox keyboard mod with trackball 1 2013-04-17

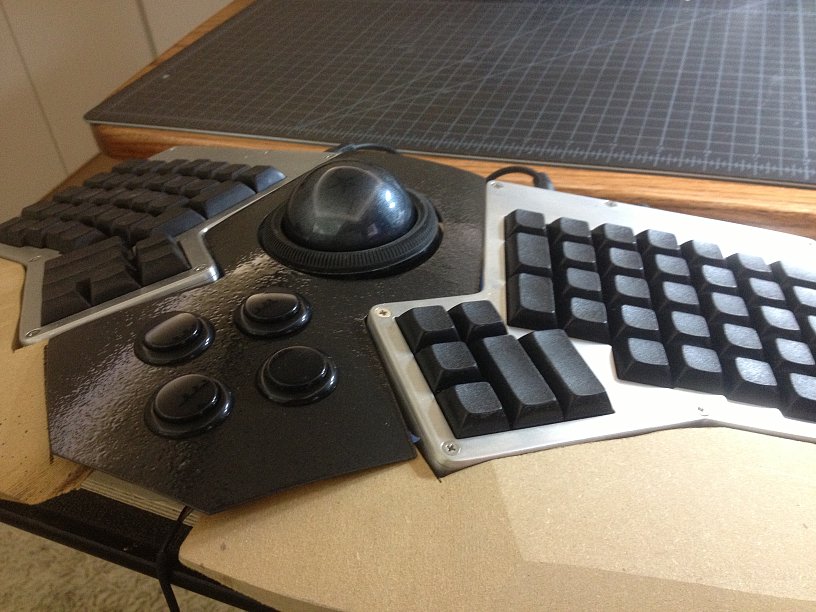

ErgoDox keyboard mod with trackball . (photo by kurplop at http://geekhack.org/…)

See those 4 buttons in the middle? smash, smash!

The trackball in the middle is from Kensington Expert Mouse. The ring around it functions as a scroll wheel.

ergodox keyboard mod with trackball 2 2013-04-17

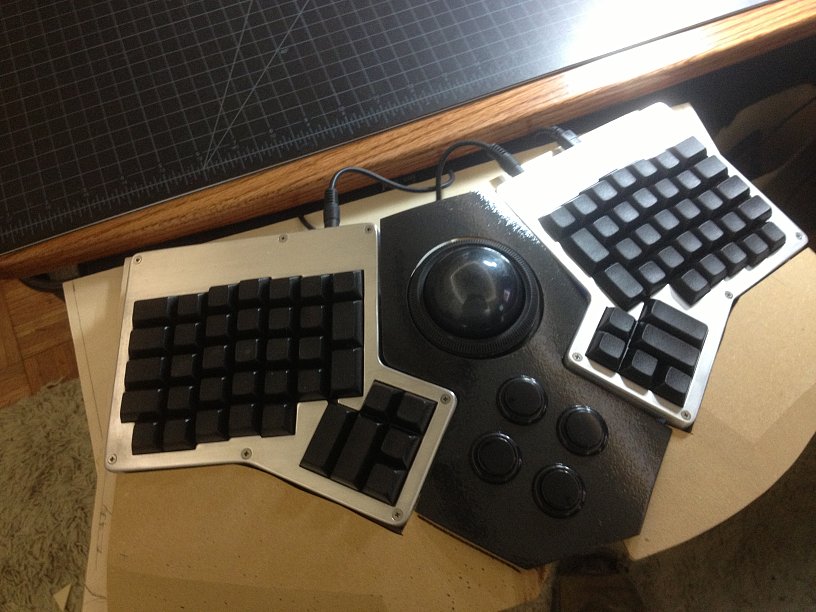

ErgoDox keyboard mod with trackball . (photo by kurplop at http://geekhack.org/…)

Planet 6 Keyboard

keyboard trackball planet6  Kurt Plubell 25273
keyboard design and build by Kurt Plubell (aka kurplop) 〔image source https://geekhack.org/index.php?topic=75057.0

photo permission page https://www.flickr.com/photos/kurplop/18475911565/in/album-72157651718823173/

(didn't get answer for permission request. I use a smaller image i hope is fair use)

Keyboard Planet 6

Ergodox Heart Keyboard

ergodox heart keyboard 2015-08
“ergodox heart keyboard” improved ergodox thumb cluster. by jacobolus. 〔from https://deskthority.net/workshop-f7/split-ergonomic-keyboard-project-t1753-990.html

see Ergodox Keyboard Thumb Keys Pain

my review of ergodox at Ergodox Keyboard Review.
