Wolfram: Lighting

Lighting Intro

Lighting interacts with Surface Color.

Lighting have many possibilities:

• Lighting can have multiple light sources.
• Each light source can be in different position. It can be fixed relative to the object, or can be fixed relative to the viewing screen, so that rotating the object changes its shadow.
• Each light source can have different color.
• Each light source can be different type.
  • DirectionalLight light (like sun light)
  • SpotLight (like a flashlight)
  • PointLight (like a lamp)
  • AmbientLight (like in a well-lit room)
• Some light source can attenuate by distance to object.

Also, surface normals can be set to arbitrary function so the object reflect light in a non-standard way.

Specify Lighting

Lighting can be specify in 2 ways:

Local Lighting Per Graphics Primitive

As a Graphics Directive attached to the Graphics Primitive.

Global Lighting

As the option Lighting for Graphics3D, Plot3D, ParametricPlot3D etc.

Lighting (Global Lighting)

Lighting

• Lighting -> None → no light.
• Lighting -> LightSource → a light source.
• Lighting -> {LightSource1, LightSource2, etc} → multiple sources.

• Lighting

Lighting are Graphics Directives

(*
Light directive can be attached to each graphics primitive.

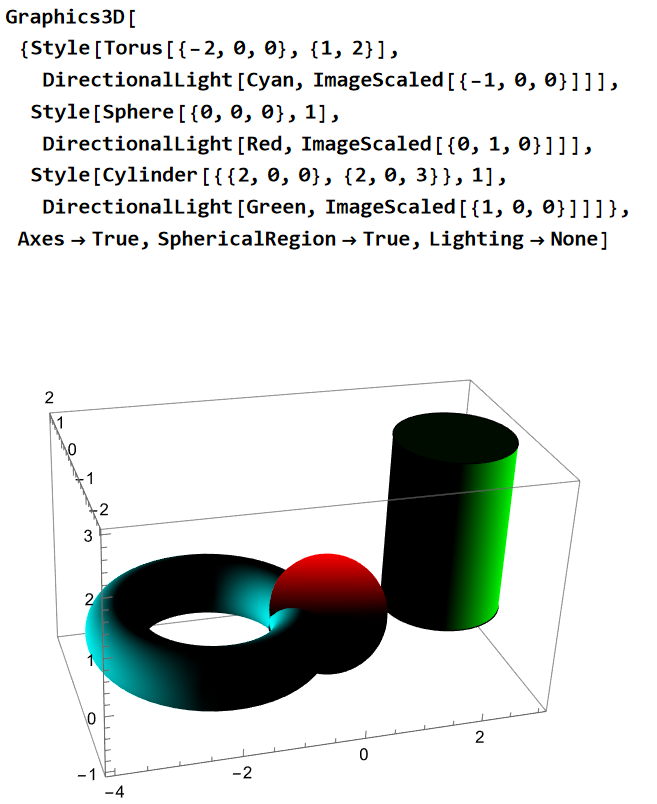

Torus, on the left. cyan light, from left of screen.
Sphere, on middle. red light, from top of screen.
Cylinder, on the right. green light, from right of screen.
 *)

Graphics3D[
{
Style[Torus[{-2,0,0},{1,2}] , DirectionalLight[Cyan, ImageScaled[{-1, 0, 0}] ]],
Style[Sphere[{0,0,0},1] , DirectionalLight[Red, ImageScaled[{0, 1, 0}] ]],
Style[ Cylinder[{{2,0,0}, {2,0,3}},1] , DirectionalLight[Green, ImageScaled[{1, 0, 0}] ]]
},
Axes -> True,
SphericalRegion -> True,
Lighting -> None
]

DirectionalLight

DirectionalLight

Like sun light. Parallel rays.

Direction light is great way to show complex shape, because it is simple, and it cast shadows, to give cue of the shape.

One way is to use a single direction light, and have the light source fixed relative to the viewing screen, so that rotating the object changes its shadow. Use ImageScaled[{1, 1, 1}] as coordinate to fix the light source to the viewing screen.

• DirectionalLight

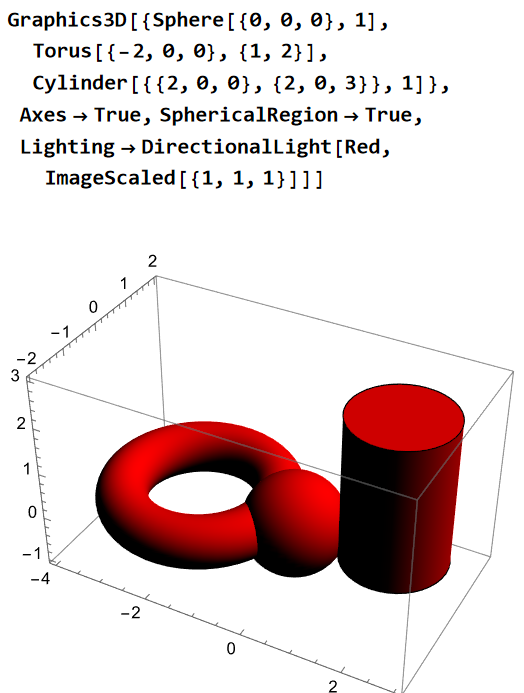

Graphics3D[
{Sphere[{0,0,0},1], Torus[{-2,0,0},{1,2}], Cylinder[{{2,0,0}, {2,0,3}},1] },
Axes -> True,
SphericalRegion -> True,
Lighting -> DirectionalLight[Red, ImageScaled[{1, 1, 1}] ]
]

Example

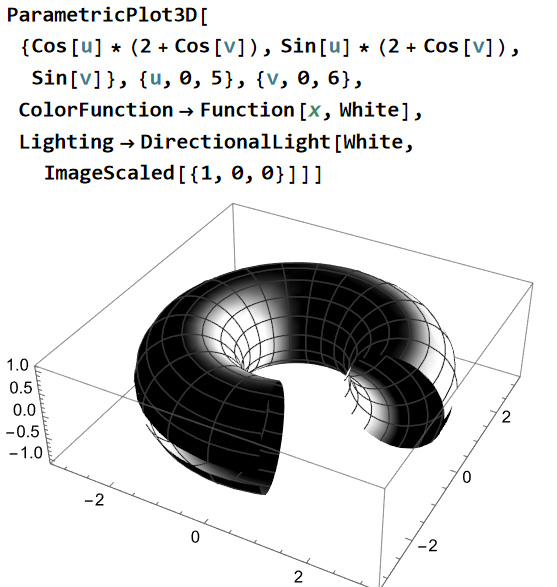

ParametricPlot3D[
{Cos[u]*(2 + Cos[v]), Sin[u]*(2 + Cos[v]), Sin[v]} ,
{u, 0, 5},
{v, 0, 6},
SphericalRegion -> True,
ColorFunction -> Function[x, White],
Lighting -> DirectionalLight[White, ImageScaled[{1, 0, 0}]]
]

PointLight

PointLight

Like from a light bulb.

• PointLight

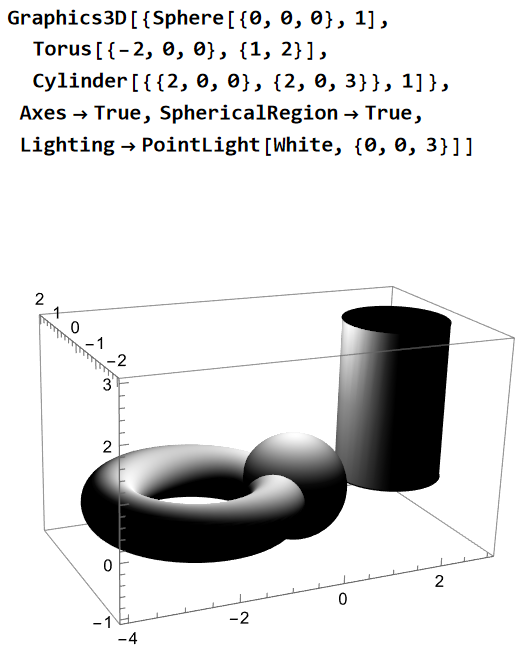

Graphics3D[
{Sphere[{0,0,0},1], Torus[{-2,0,0},{1,2}], Cylinder[{{2,0,0}, {2,0,3}},1] },
Axes -> True,
SphericalRegion -> True,
Lighting -> PointLight[White, {0, 0, 3}]
]

SpotLight

SpotLight

Like a flashlight. Rays from a point, and conical spread. No light outside of the cone.

• SpotLight

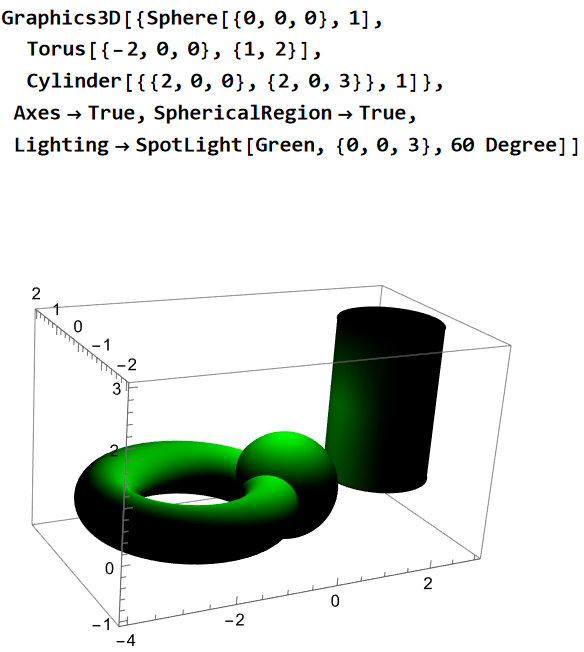

Graphics3D[
{Sphere[{0,0,0},1], Torus[{-2,0,0},{1,2}], Cylinder[{{2,0,0}, {2,0,3}},1] },
Axes -> True,
SphericalRegion -> True,
Lighting -> SpotLight[Green, {0, 0, 3}, 60 Degree]
]

AmbientLight

AmbientLight

Surrounding light, from all directions. Cast no shadows.

• AmbientLight

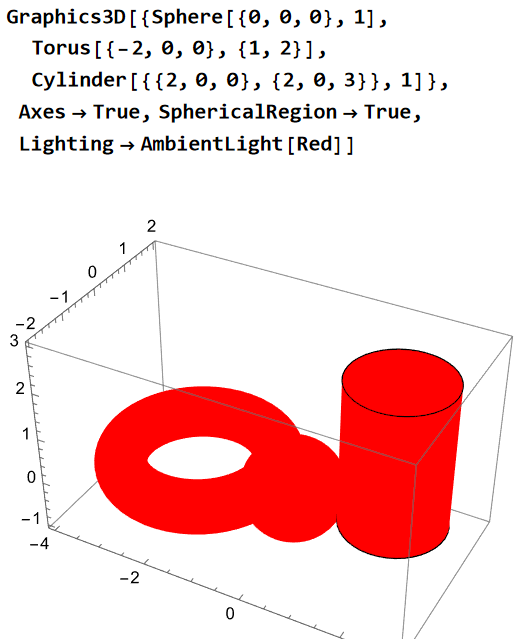

Graphics3D[
{Sphere[{0,0,0},1], Torus[{-2,0,0},{1,2}], Cylinder[{{2,0,0}, {2,0,3}},1] },
Axes -> True,
SphericalRegion -> True,
Lighting -> AmbientLight[Red]
]

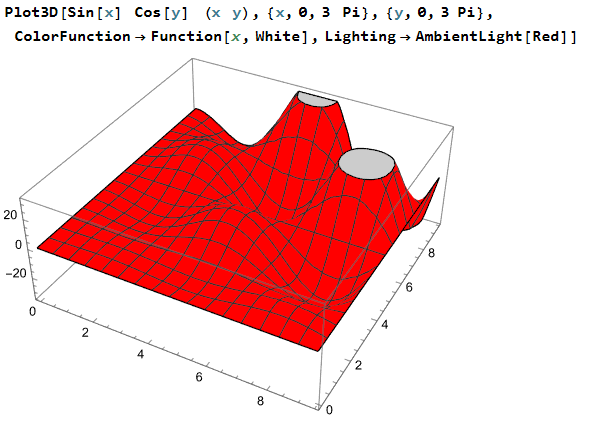

Plot3D[Sin[x]  Cos[y]  (x  y), {x, 0, 3  Pi}, {y, 0, 3 Pi},
ColorFunction -> Function[x, White],
 Lighting -> AmbientLight[Red]
]
