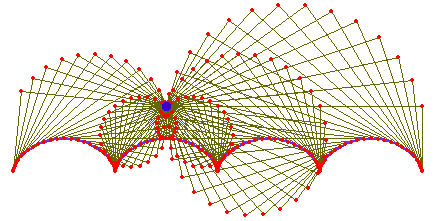

Cycloid (tautochrone, brachistochrone) is a member of cycloidal family of curves. (See: Curve Family Index) Prolate (extended) or curtate (contracted) cycloids are also known as trochoids. In this page, we use the narrowest definition of the term cycloid, defined as the trace of a point on the circumsference of a circle rolling on a line without slipping.

In the right figure, c is the rolling circle. P is the tracing point. A is the point of contact with line. PA is the normal at P. E is a reflection of P through A. The locus of E is the evolute of the cycloid.

cycloid cycloidGen
Tracing a Cycloid
cycloid Tangent Construct
Tracing a Cycloid by Tangent




The catacaustic of a cycloid with respect to parallel rays coming beneath its arc are two smaller cycloids. (Or, the diacaustic of the cycloid with rays coming from above.)

cycloid cycloid
Catacaustic with vertical rays

Evolute and Involute

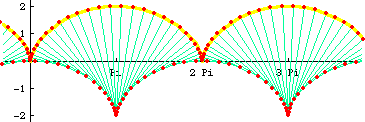

The evolute of a cycloid is another cycloid. The first figure show succesive evolutes of a cycloid. The second connect points on the curve with their center of osculating circles.

cycloid cycloid
Left: The green cycloid is the evolute of the red cycloid is the evolute of the blue cycloid. Right: The yellow cycloid's normals (green) are draw up to the center of osculating circle. The endings form its evolute curve, which is another cycloid. Constructing Evolute of a Cycloid

The involute of a cycloid is also a cycloid. Both evolute and involute properties are easily proved by a direct application of the formula and simplify the result.

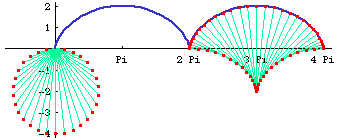

The radial of a cycloid is a circle.

cycloid cycloidRadial

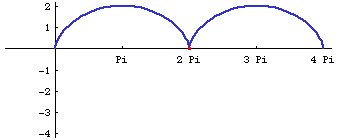

Generating Radial Radial of a Cycloid
